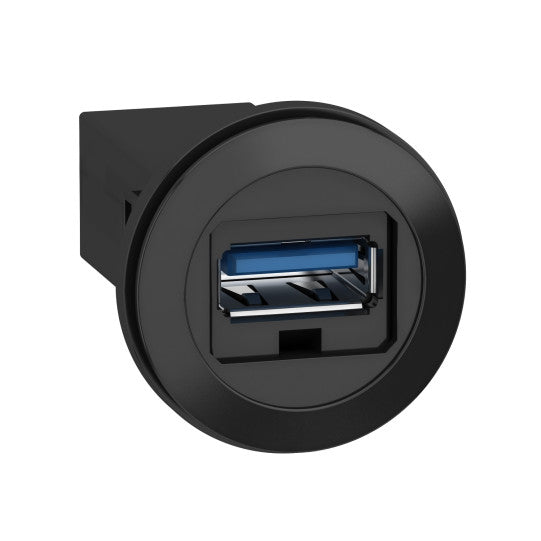

Panel mounted USB 3.0 port, plastic, Ø22, for USB interface jack type A - XB5PUSB3
SKU : XB5PUSB3
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Panel mounted USB 3.0 port, plastic, Ø22, for USB interface jack type A - XB5PUSB3
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Panel mounted USB port |
| Device short name: | XB5P |
| Sale per indivisible quantity: | 1 |
|---|---|
| Mounting diameter: | 22 mm |
| Thickness: | 6 mm without protection cover1.5...5 mm with protection cover plastic1.5...5 mm with protection cover rigid plastic1.5...2.5 mm with protection cover metal |
| Bezel material: | Plastic |
| Fixing collar material: | Plastic |
| Integrated connection type: | USB 3.0 type A |
| Minimum number of matings: | 1500 cycles |
| IP degree of protection: | IP20 front: conforming to IEC 60529IP20 back: conforming to IEC 60529 |
| Ambient air temperature for operation: | -40...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Tightening torque: | 1.5 N.m |
| Vibration resistance: | 5.35 gn15 min per axis |
| Shock resistance: | 30 gn 11 ms 3 chocks in each direction X, Y and Z |
| Standards: | USB 3.0 |
| Product certifications: | CSAUL listed |
| Height: | 28 mm |
| Width: | 28 mm |
| Depth: | 44 mm |
| Product weight: | 0.0169 kg |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
|---|---|
| Toxic heavy metal free: | Yes |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | X |
| Environmental Disclosure: | ENVPEP1710010EN |
| Circularity Profile: | ENVEOLI1710010EN |
| WEEE: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Code EAN: | 3606481194206 |
|---|
