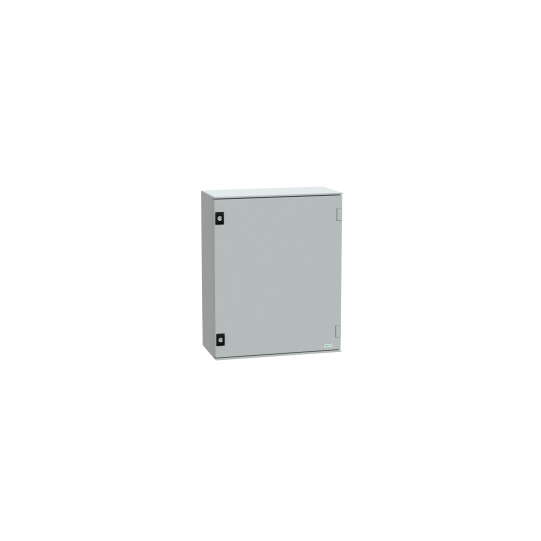

PanelSet PLM - wall-mounting encl. polyester monobloc IP66 H530xW430xD200mm+metal mount.plate - NSYPLM54PG
SKU : NSYPLM54PG
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
PanelSet PLM - wall-mounting encl. polyester monobloc IP66 H530xW430xD200mm+metal mount.plate - NSYPLM54PG
DESCRIPTION
| Range: | PanelSet PLM |
|---|---|
| Product name: | PanelSet PLM PLM |
| Device short name: | PLM |
| Device application: | Multi-purpose |
| Product or component type: | Compact enclosure |
| Enclosure nominal height: | 530 mm |
| Enclosure nominal width: | 430 mm |
| Enclosure nominal depth: | 200 mm |
| Enclosure mounting: | Wall mounted |
| Device composition: | 1 body1 door1 mounting plate2 lock |
| Door type: | Plain |
| Lock type: | 3 mm double-bar lock |
| Number of locks: | 2 |
|---|---|
| Mounting plate description: | Plain steel |
| Accessibility for operation: | Front |
| Removable parts: | Door by hingesMounting plate by fixing element |
| Material: | Polyester reinforced with fibreglass |
| Colour: | Grey (RAL 7035) |
| Standards: | NEMA classification 4XNEMA classification 13IEC 62208 |
| Product certifications: | UL |
| Electrical insulation class: | Class II |
| IP degree of protection: | IP66 conforming to IEC 60529 |
|---|---|
| IK degree of protection: | IK10 conforming to IEC 62262 |
| Fire resistance: | 960 °C conforming to IEC 62208 |
| Ambient air temperature for operation: | -40...80 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480776595 |
|---|
