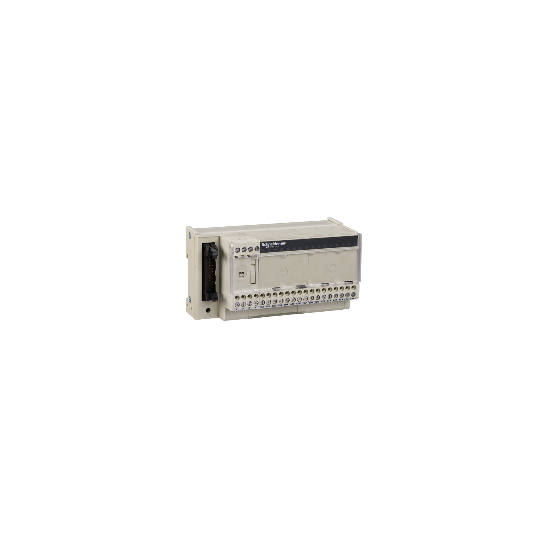

passive connection sub-base ABE7 - 16 inputs or outputs - Led - isolator - ABE7H16S21
DESCRIPTION
| Range of product: | Modicon ABE7 |
|---|---|
| Product or component type: | Passive discrete I/O sub-base |
| Sub-base type: | I/O sub-base |
| [Us] rated supply voltage: | 19...30 V conforming to IEC 61131-2 |
| Number of channels: | 16 |
| Number of terminal per channel: | 2 |
| Connections - terminals: | Screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable endScrew type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solidScrew type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable endScrew type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable endScrew type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid |
| Channel additional information: | 1 switch disconnector per channel |
| Supply circuit type: | DC |
|---|---|
| Number of horizontal rows: | 2 |
| Status LED: | 1 LED per channel (green)channel status1 LED (green)power ON |
| Polarity distribution: | 0 V or 24 V |
| Short-circuit protection: | 2 A internal fuse, 5 x 20 mm, fast blow (PLC end) |
| Connector type: | HE-10 |
| Pin number: | 20 pins |
| Fixing mode: | By clips (35 mm symmetrical DIN rail)By screws (solid plate with fixing kit) |
| Maximum supply current: | 1.8 A |
| Current per channel: | 0.5 A |
| Maximum current per output common: | 1.8 A |
| Voltage drop on power supply fuse: | 0.3 V |
| [Ui] rated insulation voltage: | 2000 V |
| Installation category: | II conforming to IEC 60664-1 |
| Tightening torque: | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Width: | 125 mm |
| Product weight: | 0.375 kg |
| Product certifications: | GLBVCSAULDNVLROS (Lloyds register of shipping)EAC |
|---|---|
| IP degree of protection: | IP2x conforming to IEC 60529 |
| Resistance to incandescent wire: | 750 °C conforming to IEC 60695-2-11 |
| Shock resistance: | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance: | 2 gn (f= 10...150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge: | 4 kV (contact) level 3 conforming to IEC 61000-4-28 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields: | 10 V/m (26000000...1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients: | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation: | -5...60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage: | -40...80 °C conforming to IEC 61131-2 |
| Pollution degree: | 2 conforming to IEC 60664-1 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110644517 |
|---|
