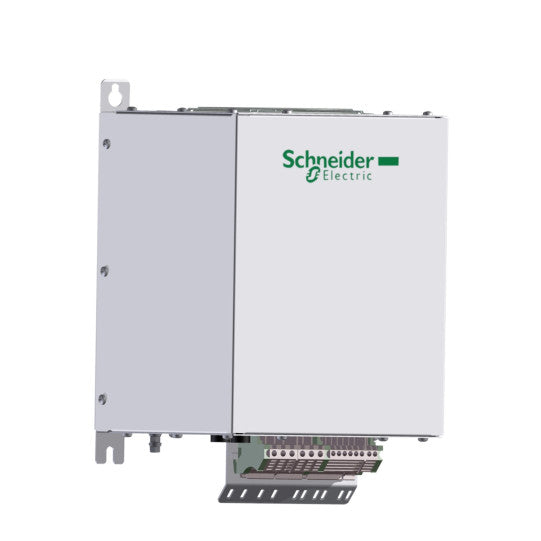

passive filter - 6 A - 400 V - for variable speed drive - VW3A46101
DESCRIPTION
| Product or component type: | Passive filter |
|---|---|
| Product specific application: | Reduction of current harmonics |
| Range compatibility: | Altivar Process ATV900Altivar Process ATV600Altivar 61Altivar 71 |
|---|---|
| [Us] rated supply voltage: | 400 V +/- 10 % |
| Supply frequency: | 50 Hz +/- 2 % |
| Quantity per drive: | 1 filter per drive for variable speed drive ATV61W motor: 0.75 kW/1 hp1 filter per drive for variable speed drive ATV61W motor: 1.5 kW/2 hp1 filter per drive for variable speed drive ATV61W motor: 2.2 kW/3 hp1 filter per drive for variable speed drive ATV61W motor: 3 kW1 filter per drive for variable speed drive ATV61H motor: 0.75 kW/1 hp1 filter per drive for variable speed drive ATV61H motor: 1.5 kW/2 hp1 filter per drive for variable speed drive ATV61H motor: 2.2 kW/3 hp1 filter per drive for variable speed drive ATV61H motor: 3 kW1 filter per drive for variable speed drive ATV71H motor: 0.75 kW/1 hp1 filter per drive for variable speed drive ATV71H motor: 1.5 kW/2 hp1 filter per drive for variable speed drive ATV71H motor: 2.2 kW/3 hp1 filter per drive for variable speed drive ATV71H motor: 3 kW1 filter per drive for variable speed drive ATV71P motor: 0.75 kW/1 hp1 filter per drive for variable speed drive ATV71P motor: 1.5 kW/2 hp1 filter per drive for variable speed drive ATV71P motor: 2.2 kW/3 hp1 filter per drive for variable speed drive ATV71P motor: 3 kW1 filter per drive for variable speed drive ATV71W motor: 0.75 kW/1 hp1 filter per drive for variable speed drive ATV71W motor: 1.5 kW/2 hp1 filter per drive for variable speed drive ATV71W motor: 2.2 kW/3 hp1 filter per drive for variable speed drive ATV71W motor: 3 kW1 filter per drive for variable speed drive ATV630 wall mount, motor: 0.75 kW/1 hp1 filter per drive for variable speed drive ATV630 wall mount, motor: 1.5 kW/2 hp1 filter per drive for variable speed drive ATV630 wall mount, motor: 2.2 kW/3 hp1 filter per drive for variable speed drive ATV630 wall mount, motor: 3 kW1 filter per drive for variable speed drive ATV650 wall mount, motor: 0.75 kW/1 hp1 filter per drive for variable speed drive ATV650 wall mount, motor: 1.5 kW/2 hp1 filter per drive for variable speed drive ATV650 wall mount, motor: 2.2 kW/3 hp1 filter per drive for variable speed drive ATV650 wall mount, motor: 3 kW1 filter per drive for variable speed drive ATV930 wall mount, motor: 0.75 kW/1 hp1 filter per drive for variable speed drive ATV930 wall mount, motor: 1.5 kW/2 hp1 filter per drive for variable speed drive ATV930 wall mount, motor: 2.2 kW/3 hp1 filter per drive for variable speed drive ATV930 wall mount, motor: 3 kW1 filter per drive for variable speed drive ATV950 wall mount, motor: 0.75 kW/1 hp1 filter per drive for variable speed drive ATV950 wall mount, motor: 1.5 kW/2 hp1 filter per drive for variable speed drive ATV950 wall mount, motor: 2.2 kW/3 hp1 filter per drive for variable speed drive ATV950 wall mount, motor: 3 kW |
| [In] rated current: | 6 A for input6.2 A for output |
| Network number of phases: | 3 phases |
| THDI: | 10 % for variable speed drive ATV61W motor: 0.75 kW/1 hp10 % for variable speed drive ATV61W motor: 1.5 kW/2 hp10 % for variable speed drive ATV61W motor: 2.2 kW/3 hp10 % for variable speed drive ATV61W motor: 3 kW16 % for variable speed drive ATV61H motor: 0.75 kW/1 hp16 % for variable speed drive ATV61H motor: 1.5 kW/2 hp16 % for variable speed drive ATV61H motor: 2.2 kW/3 hp16 % for variable speed drive ATV61H motor: 3 kW16 % for variable speed drive ATV71H motor: 0.75 kW/1 hp16 % for variable speed drive ATV71H motor: 1.5 kW/2 hp16 % for variable speed drive ATV71H motor: 2.2 kW/3 hp16 % for variable speed drive ATV71H motor: 3 kW16 % for variable speed drive ATV71P motor: 0.75 kW/1 hp16 % for variable speed drive ATV71P motor: 1.5 kW/2 hp16 % for variable speed drive ATV71P motor: 2.2 kW/3 hp16 % for variable speed drive ATV71P motor: 3 kW16 % for variable speed drive ATV71W motor: 0.75 kW/1 hp16 % for variable speed drive ATV71W motor: 1.5 kW/2 hp16 % for variable speed drive ATV71W motor: 2.2 kW/3 hp16 % for variable speed drive ATV71W motor: 3 kW10 % for variable speed drive ATV630 motor: 0.75 kW/1 hp10 % for variable speed drive ATV630 motor: 1.5 kW/2 hp10 % for variable speed drive ATV630 motor: 2.2 kW/3 hp10 % for variable speed drive ATV630 motor: 3 kW10 % for variable speed drive ATV650 motor: 0.75 kW/1 hp10 % for variable speed drive ATV650 motor: 1.5 kW/2 hp10 % for variable speed drive ATV650 motor: 2.2 kW/3 hp10 % for variable speed drive ATV650 motor: 3 kW10 % for variable speed drive ATV930 motor: 0.75 kW/1 hp10 % for variable speed drive ATV930 motor: 1.5 kW/2 hp10 % for variable speed drive ATV930 motor: 2.2 kW/3 hp10 % for variable speed drive ATV930 motor: 3 kW10 % for variable speed drive ATV950 motor: 0.75 kW/1 hp10 % for variable speed drive ATV950 motor: 1.5 kW/2 hp10 % for variable speed drive ATV950 motor: 2.2 kW/3 hp10 % for variable speed drive ATV950 motor: 3 kW |
| Max current: | 1.5 x nominal current (duration = 60 s) |
| Efficiency: | 98 % |
| Thermal losses: | 88 W |
| Cos phi: | 1 (150 % of line current)0.85 (75 % of line current)0.99 (100 % of line current) |
| Electrical connection: | X1-1...X2-3 terminal, connection capacity: 0.5...10 mm²A, B terminal, connection capacity: 2.5 mm² |
| Electrical insulation class: | Class F |
| Product weight: | 12 kg |
| IP degree of protection: | IP20IP55 (enclosure mounting) |
|---|---|
| Vibration resistance: | 2 mm peak to peak (f= 5...13.2 Hz) conforming to EN 60068-2-60.7 gn (f= 13.2...150 Hz) conforming to EN 60068-2-6 |
| Relative humidity: | 5...85 % without condensation |
| Ambient air temperature for operation: | 45...60 °C (with current derating 3 % per °C)5...45 °C (without current derating) |
| Ambient air temperature for storage: | -25...55 °C storage in original packaging-25...65 °C during transport |
| Operating altitude: | > 1000...4000 m with current derating 5 % per 1000 m |
| Standards: | EN/IEC 61000-3-4EN/IEC 61000-2-2G5/4 engineering recommendationEN/IEC 61000-3-12EN/IEC 61000-3-2EN/IEC 61000-2-4 |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3606480639920 |
|---|
