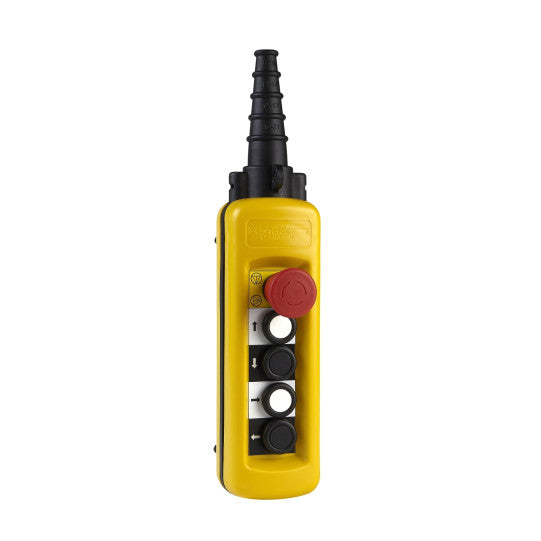

Pendant control station XAC-A - 4 pushbuttons 1 Emergency stop - XACA4813
SKU : XACA4813
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Pendant control station XAC-A - 4 pushbuttons 1 Emergency stop - XACA4813
DESCRIPTION
| Range of product: | Harmony XAC |
|---|---|
| Product or component type: | Pendant control station |
| Device short name: | XACA |
| Control station type: | Double insulated |
|---|---|
| Enclosure material: | Polypropylene |
| Electrical circuit type: | Control circuit |
| Enclosure type: | Complete ready for use |
| Control station application: | Control of single speed hoist motor |
| Control station composition: | 4 push-buttons + 1 emergency stop |
| Control button type: | First push-button 1 NC + 1 NO raise, slowSecond push-button 1 NC + 1 NO lower, slowEmergency stop push-button Ø 40 mm 1 NC trigger actionFourth push-button 1 NC + 1 NO left, slowThird push-button 1 NC + 1 NO right, slow |
| Product compatibility: | ZB2BE102 for emergency stopZB2BE102 + ZB2BE101 for each direction |
| Mechanical interlocking: | With mechanical interlocking between pairs |
| Control station colour: | Yellow |
| Connections - terminals: | Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable endScrew clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
| Standards: | EN/IEC 60947-5-5EN/IEC 60947-5-1EN/IEC 60204-32EN/ISO 13850: 2006UL 508CSA C22.2 No 14 |
| Product certifications: | CCCGOST |
| Protective treatment: | TH |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 15 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 100 gn conforming to IEC 60068-2-27 |
| Overvoltage category: | Class II conforming to IEC 61140 |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| IK degree of protection: | IK08 conforming to EN 50102 |
| Mechanical durability: | 1000000 cycles |
| Cable entry: | Rubber sleeve with stepped entry 8...26 mm |
| Contact code designation: | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix AA600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix AQ600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix AQ600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 10 A |
| [Ui] rated insulation voltage: | 600 V (pollution degree 3) |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-1 |
| Contact operation: | Slow-break |
| Maximum resistance across terminals: | 25 MOhm |
| Operating force: | 13 N push-button8 N emergency stop |
| Short-circuit protection: | 10 A fuse protection by cartridge fuse type gG |
| Rated operational power in W: | 40 W DC-13 for 1000000 cycles, operating rate 48 W DC-13 for 1000000 cycles, operating rate 65 W DC-13 for 1000000 cycles, operating rate |
| Terminals description ISO n°1: | (11-12)NC(13-14)NO |
| Terminals description ISO n°2: | (11-12)NC |
| Terminal identifier: | (11-12)NC(13-14)NO |
| Product weight: | 0.815 kg |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic heavy metal free: | Yes |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | X |
| Environmental Disclosure: | ENVPEP070905EN |
| WEEE: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Code EAN: | 3389110426885 |
|---|
