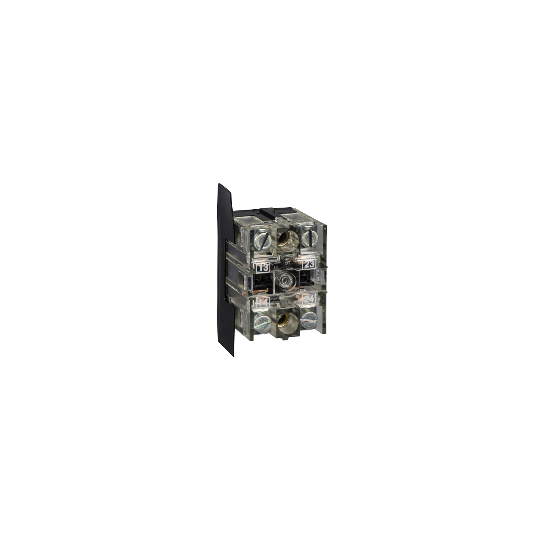

PENDANT STATION CONTACT 240VAC 3A XAC - XENB1191
DESCRIPTION
| Range of product: | Harmony XAC |
|---|---|
| Product or component type: | Contact block |
| Component name: | XENB |
| Electrical circuit type: | Control circuit |
| Contact block application: | 2-speed |
| Contact block type: | Single |
| Type of operator: | Spring return |
| Product compatibility: | XACBXACM |
| Mechanical interlocking: | Without mechanical interlock |
| Contacts type and composition: | 1 C/O + 1 NO |
| Mounting of block: | Front mounting |
| Contact operation: | Slow-breakStaggered |
| Connections - terminals: | Screw clamp terminals, 1 x 2.5 mm² with or without cable endScrew clamp terminals, 2 x 1.5 mm² with or without cable end |
|---|---|
| Mechanical durability: | 1000000 cycles |
| Contact code designation: | A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix AQ300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 10 A |
| [Ui] rated insulation voltage: | 400 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals: | 25 MOhm |
| Short-circuit protection: | 10 A fuse protection by cartridge fuse type gG |
| Rated operational power in W: | 31 W DC-13 for 1000000 cycles, operating rate 35 W DC-13 for 1000000 cycles, operating rate 48 W DC-13 for 1000000 cycles, operating rate |
| Rated operational power in VA: | 140 VA AC-15 for 1000000 cycles, operating rate 210 VA AC-15 for 1000000 cycles, operating rate 640 VA AC-15 for 1000000 cycles, operating rate 680 VA AC-15 for 1000000 cycles, operating rate |
| Terminals description ISO n°1: | (13-14-31-32)OF(23-24)NO_CL |
| Terminal identifier: | (11-12)NC(13-14)NO |
| Net weight: | 0.05 kg |
| Standards: | IEC 60947-5-1CSA C22.2 No 14EN 60947-5-1 |
|---|---|
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 15 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 100 gn conforming to IEC 60068-2-27 |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389110607666 |
|---|
