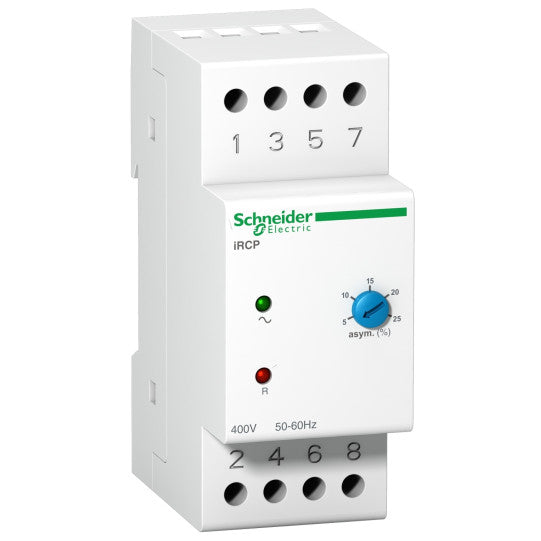

phase control relay iRCP - 8 A - 400 V 50/60Hz - 1 OC - A9E21180
DESCRIPTION
| Range: | Acti 9 |
|---|---|
| Product name: | Acti 9 iRC |
| Product or component type: | Control relay |
| Device short name: | IRCP |
| Device application: | Phase control relay |
| Signal contacts composition: | 1 C/O |
| [Ie] rated operational current: | 8 A at 250 V AC (cos Phi = 1) |
|---|---|
| Local signalling: | Red LED for faultIt reports phase loss or reversalGreen LED for power on |
| Type of setting: | Rotary knob: asymmetrySelected by wiring: measurement range |
| Tripping threshold: | 5...25 % of Us phase asymmetry |
| Hysteresis: | 5 % |
| Time delay range: | 0.3 s |
| Accuracy error: | +/- 10 % |
| [Us] rated supply voltage: | 400 V AC 50/60 Hz |
| Power consumption in VA: | 3 VA |
| Mounting mode: | Fixed |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 4 |
| Height: | 88.1 mm |
| Width: | 36 mm |
| Depth: | 67 mm |
| Product weight: | 0.21 kg |
| Colour: | White |
| Connections - terminals: | Tunnel type terminals (top or bottom) 6 cable(s) 1.5 mm² rigid |
| Market segment: | ResidentialSmall commercial |
| Compatibility code: | IRCP |
| IP degree of protection: | IP20 |
|---|---|
| Ambient air temperature for operation: | -5...55 °C |
| Ambient air temperature for storage: | -40...80 °C |
| EU RoHS Directive: | CompliantToxic heavy metal free |
| Code EAN: | 3606480377495 |
|---|
