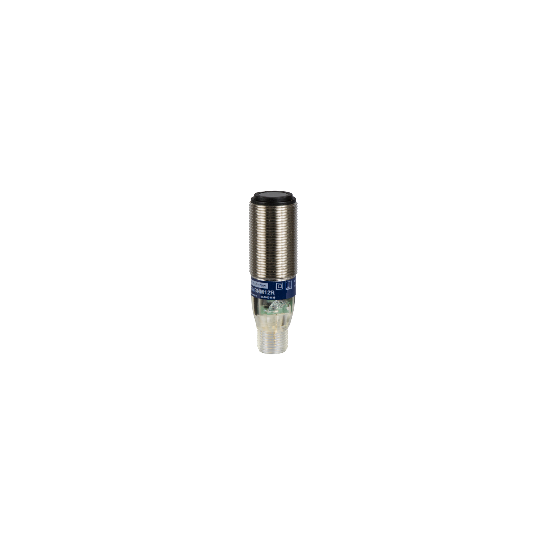

Photo-electric sensor - XUB - multi - Sn 0..20m - 12..24VDC - M12 - Télémécanique - XUB0BPSNM12
SKU : XUB0BPSNM12
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Photo-electric sensor - XUB - multi - Sn 0..20m - 12..24VDC - M12 - Télémécanique - XUB0BPSNM12
DESCRIPTION
| Range of product: | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name: | General purpose multimode |
| Electronic sensor type: | Photo-electric sensor |
| Sensor name: | XUB |
| Sensor design: | Cylindrical M18 |
| Detection system: | Multimode |
| Sensing range: | > 0...20 m |
| Material: | Metal |
| Line of sight type: | Axial |
| Type of output signal: | Discrete |
| Supply circuit type: | DC |
| Wiring technique: | 3-wire |
| Discrete output type: | PNP |
| Discrete output function: | 1 NO or 1 NC programmable |
| Electrical connection: | 1 male connector M12, 4 pins |
| Product specific application: | - |
| Emission: | Infrared diffuseInfrared diffuse with background suppressionInfrared thru beamRed polarised reflex |
| [Sn] nominal sensing distance: | 3 m polarised reflex need reflector XUZC5020 m thru beam need a transmitter XUB0BKSNM12T0.12 m diffuse with background suppression0.3 m diffuse |
| Enclosure material: | Nickel plated brass |
|---|---|
| Lens material: | PMMA |
| Maximum sensing distance: | 0.12 m diffuse with background suppression0.4 m diffuse30 m thru beam4.5 m polarised reflex |
| Output type: | Solid state |
| Add on output: | Without |
| Status LED: | 1 LED (green) for supply1 LED (red) for instability1 LED (yellow) for output state |
| [Us] rated supply voltage: | 12...24 V DC with reverse polarity protection |
| Supply voltage limits: | 10...36 V DC |
| Switching capacity in mA: | |
| Switching frequency: | |
| Maximum voltage drop: | |
| Current consumption: | 35 mA no-load |
| Maximum delay first up: | 200 ms |
| Maximum delay response: | 2 ms |
| Maximum delay recovery: | 2 ms |
| Setting-up: | Self-teaching |
| Diameter: | 18 mm |
| Length: | 78 mm |
| Product weight: | 0.055 kg |
| Product certifications: | CSACEUL |
|---|---|
| Ambient air temperature for operation: | -25...55 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 7 gn, amplitude = +/- 1.5 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection: | IP65 double insulation conforming to IEC 60529IP67 double insulation conforming to IEC 60529IP69K double insulation conforming to DIN 40050 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110148466 |
|---|
