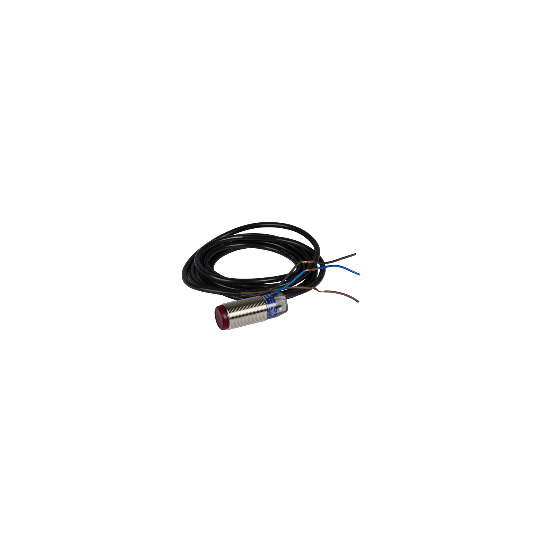

Photo-electric sensor - XUB - reflex - Sn 4m - 12..24VDC - cable 2m - Télémécanique - XUB1BPANL2
SKU : XUB1BPANL2
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Photo-electric sensor - XUB - reflex - Sn 4m - 12..24VDC - cable 2m - Télémécanique - XUB1BPANL2
DESCRIPTION
| Range of product: | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name: | General purpose single mode |
| Electronic sensor type: | Photo-electric sensor |
| Sensor name: | XUB |
| Sensor design: | Cylindrical M18 |
| Detection system: | Reflex |
| Sensing range: | > 1...5 m |
| Material: | Metal |
| Line of sight type: | Axial |
| Type of output signal: | Discrete |
| Supply circuit type: | DC |
| Wiring technique: | 3-wire |
| Discrete output type: | PNP |
| Discrete output function: | 1 NO |
| Electrical connection: | Cable |
| Cable length: | 2 m |
| Product specific application: | - |
| Emission: | Infrared reflex |
| [Sn] nominal sensing distance: | 4 m reflex need reflector XUZC50 |
| Enclosure material: | Nickel plated brass |
|---|---|
| Lens material: | PMMA |
| Maximum sensing distance: | 5.5 m reflex |
| Output type: | Solid state |
| Add on output: | Without |
| Wire insulation material: | PvR |
| Status LED: | 1 LED (yellow) for output state |
| [Us] rated supply voltage: | 12...24 V DC with reverse polarity protection |
| Supply voltage limits: | 10...36 V DC |
| Switching capacity in mA: | |
| Switching frequency: | |
| Maximum voltage drop: | |
| Current consumption: | 35 mA no-load |
| Maximum delay first up: | 15 ms |
| Maximum delay response: | 1 ms |
| Maximum delay recovery: | 1 ms |
| Setting-up: | Without sensitivity adjustment |
| Diameter: | 18 mm |
| Length: | 46 mm |
| Product certifications: | CEULCSA |
|---|---|
| Ambient air temperature for operation: | -25...55 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 7 gn, amplitude = +/- 1.5 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection: | IP67 double insulation conforming to IEC 60529IP65 double insulation conforming to IEC 60529 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110149043 |
|---|
