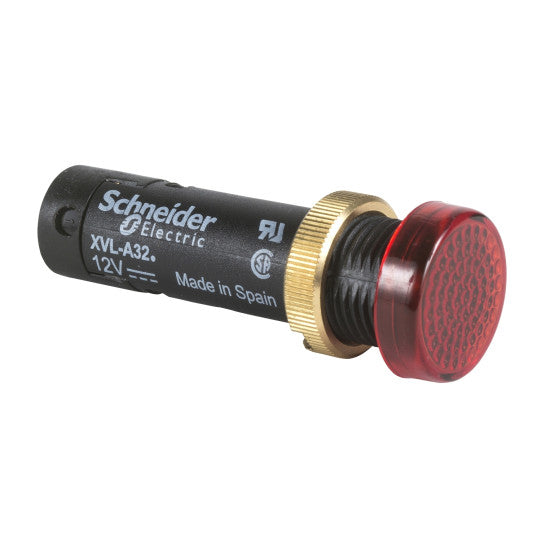

pilot light Ø12 - IP40/IP65 - red - covered LED included - 12V - lugs - XVLA324
SKU : XVLA324
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
pilot light Ø12 - IP40/IP65 - red - covered LED included - 12V - lugs - XVLA324
DESCRIPTION
| Range of product: | Harmony XVL |
|---|---|
| Product or component type: | LED pilot light with integral lens cap |
| Component name: | XVL |
| Mounting diameter: | 12 mm |
| Light source: | Covered LED |
| Light block colour: | Red |
| Protection type: | Built-in by diodeIntegral ballast resistor |
| [Us] rated supply voltage: | 12 V |
| IP degree of protection: | IP65 (with seal XVLZ912) conforming to IEC 60529IP65 (with seal XVLZ912) conforming to NF C 20-010IP40 conforming to IEC 60529IP40 conforming to NF C 20-010 |
| Supply circuit type: | DC |
|---|---|
| Connections - terminals: | Threaded connector: clamping capacity 1 x 0.2...1 x 1.5 mm² |
| Current consumption: | 18 mA |
| [Ui] rated insulation voltage: | 50 V conforming to IEC 60947-1 |
| Bulb lifespan: | 100000 h |
| Nominal voltage limit: | 0.8...1.1 Un |
| Terminals description ISO n°1: | (X1-X2)PL |
| Height: | 16 mm |
| Width: | 16 mm |
| Depth: | 51 mm |
| Product weight: | 0.007 kg |
| Product certifications: | CSAUL |
|---|---|
| Protective treatment: | TC |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Overvoltage category: | Class 3 conforming to IEC 60536Class 3 conforming to NF C 20-030 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110651621 |
|---|
