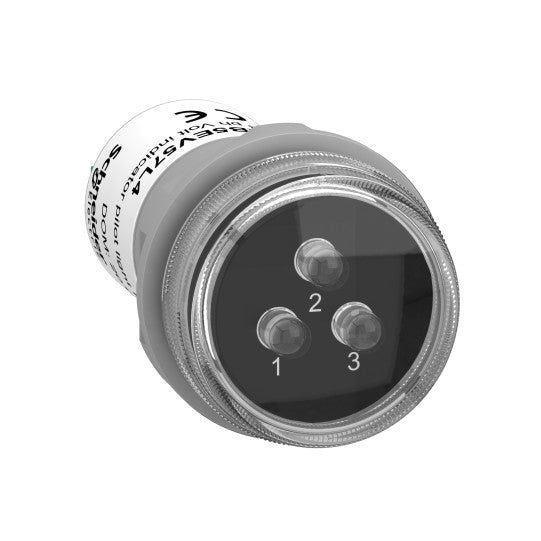

Pilot light 3 phases voltage, indicator with 3 LED, white, 400 V AC - XB5EV57L4
SKU : XB5EV57L4
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Pilot light 3 phases voltage, indicator with 3 LED, white, 400 V AC - XB5EV57L4
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Monolithic pilot light |
| Device short name: | XB5 |
| Bezel material: | Plastic |
| Fixing collar material: | Plastic |
| Mounting diameter: | 30 mm |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Cap/operator or lens colour: | Clear |
| Light source: | Protected LED |
| Bulb base: | Integral LED |
| Light source colour: | White |
| Network number of phases: | 3 phases |
| Device presentation: | Monolithic product |
| Height: | 65.5 mm |
|---|---|
| Width: | 36 mm |
| Depth: | 77 mm |
| Product weight: | 0.065 kg |
| Connections - terminals: | Faston terminals, connection size: 6.3 mm conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 1 kV conforming to IEC 61000-4-5 |
| Compatibility code: | XB5 |
| Supply voltage limits: | 450 V AC |
| Current consumption: | 2.6 mA |
| Service life: | 100000 h at rated voltage and 25 °C |
| Surge withstand: | 1 kV conforming to IEC 61000-4-5 |
| [Us] rated supply voltage: | 400 V |
| Ambient air temperature for storage: | -40...70 °C |
|---|---|
| Ambient air temperature for operation: | -30...70 °C |
| IP degree of protection: | IP67 (front face)IP20 (back face) |
| IK degree of protection: | IK10 conforming to IEC 50102 |
| Standards: | EN/IEC 60947-5-1EN/IEC 60947-5-4EN/IEC 60947-1 |
| Resistance to fast transients: | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields: | 10 V/m conforming to IEC 61000-4-3 |
| Electromagnetic compatibility: | Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2Electrostatic discharge - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481194190 |
|---|
