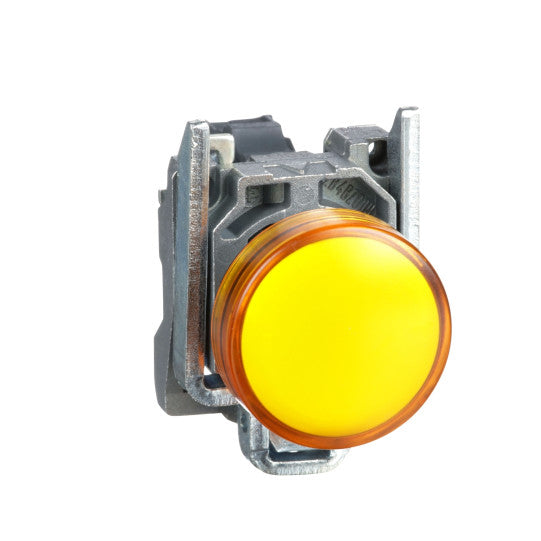

Pilot light, metal, orange, Ø22, plain lens with integral LED, 110…120 VAC - XB4BVG5
SKU : XB4BVG5
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Pilot light, metal, orange, Ø22, plain lens with integral LED, 110…120 VAC - XB4BVG5
DESCRIPTION
| Range of product: | Harmony XB4 |
|---|---|
| Product or component type: | Pilot light |
| Device short name: | XB4 |
| Bezel material: | Chromium plated metal |
| Fixing collar material: | Zamak |
| Mounting diameter: | 22 mm |
| Head type: | Standard |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Cap/operator or lens colour: | Orange |
| Operator additional information: | With plain lens |
| Light source: | Protected LED |
| Bulb base: | Integral LED |
| Light source colour: | Orange |
| [Us] rated supply voltage: | 110...120 V AC 50/60 Hz |
| Height: | 47 mm |
|---|---|
| Width: | 30 mm |
| Depth: | 54 mm |
| Terminals description ISO n°1: | (X1-X2)PL |
| Product weight: | 0.08 kg |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| [Ui] rated insulation voltage: | 250 V (pollution degree 3) conforming to EN 60947-1 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to EN 60947-1 |
| Signalling type: | Steady |
| [Us] rated supply voltage: | 110...120 V |
| Current consumption: | 14 mA |
| Service life: | 100000 h at rated voltage and 25 °C |
| Surge withstand: | 1 kV conforming to IEC 61000-4-5 |
| Device presentation: | Complete product |
| Customizable: | Yes |
| Customizable: | 1 |
| GCR BRIDGE: | XB4BVCUST04 |
| Compatibility code: | XB4 |
| Supply voltage limits: | 100...132 V AC |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Electrical shock protection class: | Class I conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67IP69IP69K |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK06 conforming to IEC 50102 |
| Standards: | EN/IEC 60947-5-1CSA C22.2 No 14UL 508EN/IEC 60947-1EN/IEC 60947-5-5EN/IEC 60947-5-4JIS C8201-5-1JIS C8201-1 |
| Product certifications: | UL listedCSA |
| Vibration resistance: | 5 gn (f= 12...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Resistance to fast transients: | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields: | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge: | 6 kV on contact (on metal parts) conforming to IEC 61000-4-28 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic emission: | Class B conforming to IEC 55011 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110891980 |
|---|
