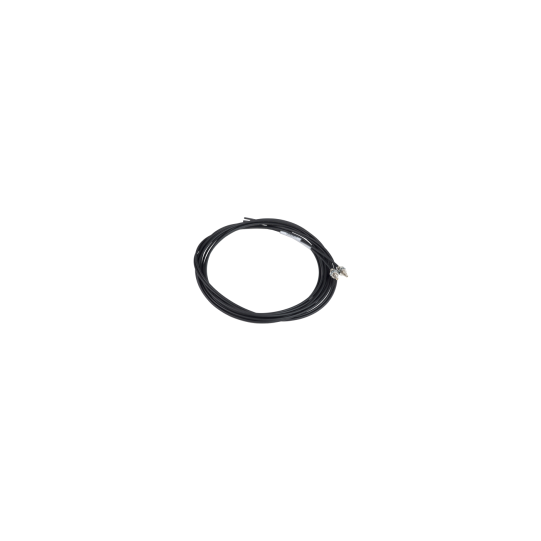

plastic fibre optic for sensor - thru-beam - general use - std. - 2m - Sn200mm - XUFN12301
SKU : XUFN12301
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
plastic fibre optic for sensor - thru-beam - general use - std. - 2m - Sn200mm - XUFN12301
DESCRIPTION
| Range of product: | Telemecanique Photoelectric sensors XU |
|---|---|
| Sensor name: | XUF |
| [Sn] nominal sensing distance: | 0.2 m0.2 m XUFZ021.5 m XUFZ01 |
| End fitting type: | M2.6 x 0.45, standard thread end fitting |
| Electronic sensor type: | Photo-electric sensor |
|---|---|
| Sensor design: | Fiber design |
| Product destination: | XUDA |
| Optic fiber material: | PMMA |
| Sheath material: | PE |
| Detection system: | Thru beam |
| Optic fiber use: | General use |
| Optic fiber length: | 2 m |
| External diameter: | 2.2 mm |
| Minimum bending radius: | 25 mm |
| Thread type: | M4 x 0.7 |
| Optic fiber core: | 1 x Ø 1 mm |
| Product weight: | 0.03 kg |
| Ambient air temperature for operation: | -25...60 °C |
|---|---|
| Ambient air temperature for storage: | -40...80 °C |
| Vibration resistance: | +/- 1.5 mm (f= 10...55 Hz) conforming to IEC 60068-2-67 gn (f= 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection: | IP64 conforming to IEC 60529IP641 conforming to NF C 20-010 |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3389110345322 |
|---|
