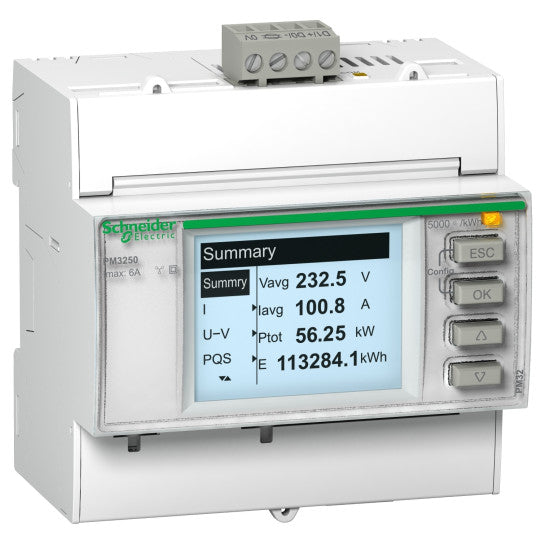

PM3255 power meter - 2 digital I - 2 digital O - RS485 - METSEPM3255
SKU : METSEPM3255
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
PM3255 power meter - 2 digital I - 2 digital O - RS485 - METSEPM3255
DESCRIPTION
| Range: | PowerLogic |
|---|---|
| Product name: | PowerLogic PM3000 |
| Device short name: | PM3255 |
| Product or component type: | Power meter |
| Market segment: | Buildings small building cost management: billing: sub feederBuildings medium building cost management: billing: sub feederBuildings large building cost management: billing: sub feederBuildings multi-site cost management: billing: sub feederData center cost management: billing: sub feederHealthcare cost management: billing: sub feederIndustry cost management: billing: sub feederBuildings small building cost management: cost allocation: sub feederBuildings medium building cost management: cost allocation: sub feederBuildings large building cost management: cost allocation: sub feederBuildings multi-site cost management: cost allocation: sub feederData center cost management: cost allocation: sub feederHealthcare cost management: cost allocation: sub feederIndustry cost management: cost allocation: sub feeder |
| Power quality analysis: | up to the 15th harmonic |
|---|---|
| Device application: | Multi-tariffPower monitoringSub billing |
| Type of measurement: | Active and reactive powerApparent powerCurrentVoltageEnergyPower factorFrequencyTotal current harmonic distortion THD (I)Total voltage harmonic distortion THD (U) |
| [Us] rated supply voltage: | 100...277 V AC 45...65 Hz173...480 V AC 45...65 Hz100...300 V DC |
| Network frequency: | 60 Hz50 Hz |
| [In] rated current: | 5 A1 A |
| Poles description: | 3P3P + N1P + N |
| Power consumption in VA: | 5 VA |
| Display type: | Backlit LCD |
| Display resolution: | 128 x 96 pixels |
| Sampling rate: | 32 samples/cycle |
| Measurement current: | 0.02...1.2 A0.05...6 A |
| Analogue input type: | Current 0...5 ACurrent 0...1 A |
| Measurement voltage: | 50...330 V AC 45...65 Hz direct50...330 V AC 45...65 Hz phase to neutral80...570 V AC 45...65 Hz direct80...570 V AC 45...65 Hz phase to phase570...999000 V AC 45...65 Hz with external VT |
| Frequency measurement range: | 45...65 Hz |
| Number of inputs: | 2 digital 0...4 mA 11...40 V DC |
| Measurement accuracy: | Current 0.3 % 0.5...6 ACurrent 0.5 % 0.1...1.2 AVoltage 0.3 % 50...330 VVoltage 0.3 % 80...570 V |
| Accuracy class: | Class 0.5S active energy conforming to IEC 62053-22Class 1 active energy conforming to IEC 62053-21Class 2 reactive energy conforming to IEC 62053-23Class C active energy conforming to EN 50470-3 |
| Number of outputs: | 2 digital (static) |
| Information displayed: | Tariff (4) |
| Communication port protocol: | Modbus at 9.6...38.4 kbauds |
| Communication port support: | RS485 |
| Data recording: | Energy consumption logs15 alarmsPower logsTime stampingMin/max of instantaneous values |
| Memory capacity: | 512 kB |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Standards: | IEC 61557-12EN 50470-3EN 61557-12EN 50470-1EN 61010-1UL 61010-1IEC 62052-11 |
| Product certifications: | CE conforming to EN 61010-1CULus conforming to UL 61010-1UL |
| Width: | 90 mm |
| Depth: | 70 mm |
| Height: | 95 mm |
| Product weight: | 0.26 kg |
| Market segment: | Small commercialResidential |
| Electromagnetic compatibility: | Electrostatic discharge level 4 conforming to IEC 61000-4-2Susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs shock waves immunity test level 4 conforming to IEC 61000-4-5Conducted RF disturbances level 3 conforming to IEC 61000-4-6Magnetic field at power frequency - test level: 0.5 mT conforming to IEC 61000-4-8Conducted and radiated emissions class B conforming to EN 55022 |
|---|---|
| Overvoltage category: | III |
| IP degree of protection: | IP40 front panel: conforming to IEC 60529IP20 body: conforming to IEC 60529 |
| Relative humidity: | 5...95 % at 50 °C |
| Pollution degree: | 2 |
| Ambient air temperature for operation: | -25...55 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Operating altitude: | 0...3000 m |
| Compatibility code: | PM3255 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480481611 |
|---|
