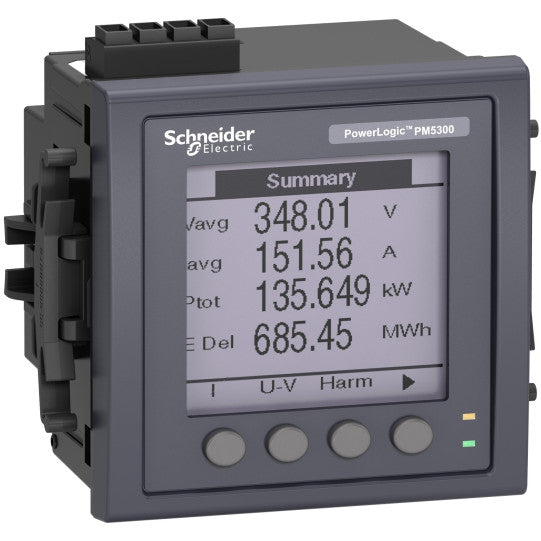

PM5320 Meter, ethernet, up to 31st H, 256K 2DI/2DO 35 alarms - METSEPM5320
SKU : METSEPM5320
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
PM5320 Meter, ethernet, up to 31st H, 256K 2DI/2DO 35 alarms - METSEPM5320
DESCRIPTION
| Range: | PowerLogic |
|---|---|
| Product name: | PowerLogic PM5000 |
| Device short name: | PM5320 |
| Product or component type: | Power meter |
| Market segment: | Buildings small building cost management: billing: main incomerBuildings small building cost management: billing: sub feederBuildings medium building cost management: billing: main incomerBuildings medium building cost management: billing: sub feederBuildings large building cost management: billing: main incomerBuildings large building cost management: billing: sub feederBuildings multi-site cost management: billing: main incomerBuildings multi-site cost management: billing: sub feederData center cost management: billing: main incomerData center cost management: billing: sub feederHealthcare cost management: billing: main incomerHealthcare cost management: billing: sub feederIndustry cost management: billing: main incomerIndustry cost management: billing: sub feederBuildings small building cost management: cost allocation: main incomerBuildings small building cost management: cost allocation: sub feederBuildings medium building cost management: cost allocation: main incomerBuildings medium building cost management: cost allocation: sub feederBuildings large building cost management: cost allocation: main incomerBuildings large building cost management: cost allocation: sub feederBuildings multi-site cost management: cost allocation: main incomerBuildings multi-site cost management: cost allocation: sub feederData center cost management: cost allocation: main incomerData center cost management: cost allocation: sub feederHealthcare cost management: cost allocation: main incomerHealthcare cost management: cost allocation: sub feederIndustry cost management: cost allocation: main incomerIndustry cost management: cost allocation: sub feederBuildings small building network management: main incomerBuildings small building network management: sub feederBuildings medium building network management: main incomerBuildings medium building network management: sub feederBuildings large building network management: sub feederBuildings multi-site network management: sub feederData center network management: sub feederHealthcare network management: sub feederIndustry network management: sub feeder |
| Power quality analysis: | up to the 31st harmonic |
|---|---|
| Device application: | Multi-tariffPower monitoring |
| Type of measurement: | CurrentVoltageFrequencyPower factorEnergyActive and reactive power |
| [Us] rated supply voltage: | 100...415 V AC 45...65 Hz125...250 V DC |
| Network frequency: | 50 Hz60 Hz |
| [In] rated current: | 1 A5 A |
| Poles description: | 1P + N3P + N3P |
| Maximum power consumption in VA: | 10 VA at 415 V |
| Ride-through time: | 80 ms 120 V AC typical100 ms 230 V AC typical100 ms 415 V AC typical |
| Display type: | Backlit LCD |
| Display resolution: | 128 x 128 pixels |
| Sampling rate: | 64 samples/cycle |
| Measurement current: | 10...9000 mA |
| Analogue input type: | Voltage (impedance 5 MOhm)Current (impedance 0.3 mOhm) |
| Measurement voltage: | 35...690 V AC 45...65 Hz between phases20...400 V AC 45...65 Hz between phase and neutral |
| Frequency measurement range: | 45...65 Hz |
| Number of inputs: | 2 digital |
| Measurement accuracy: | Active energy +/- 0.5 %Reactive energy +/- 2 %Active power +/- 0.5 %Apparent power +/- 0.5 %Frequency +/- 0.05 %Power factor +/- 0.005Current +/- 0.5 %Voltage +/- 0.5 % |
| Accuracy class: | Class 0.5S active energy conforming to IEC 62053-22 |
| Number of outputs: | 2 digital |
| Information displayed: | Tariff (4) |
| Communication port protocol: | Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 VBACnet IP |
| Communication port support: | Ethernet |
| Data recording: | Maintenance logsAlarm logsMin/max of instantaneous valuesEvent logsTime stampingData logs |
| Memory capacity: | 256 kB |
| Connections - terminals: | Voltage circuit: screw terminal block4Control circuit: screw terminal block2Current transformer: screw terminal block6Input/output circuit: screw terminal block6Relay output: screw terminal block4Ethernet network: RJ45 connector |
| Mounting mode: | Flush-mounted |
| Mounting support: | Framework |
| Standards: | IEC 62053-22EN 50470-1IEC 60529IEC 61557-12UL 61010-1EN 50470-3IEC 62053-24 |
| Product certifications: | CE conforming to IEC 61010-1CULus conforming to UL 61010-1 |
| Width: | 96 mm |
| Depth: | 72 mm |
| Height: | 96 mm |
| Product weight: | 430 g |
| Electromagnetic compatibility: | Limits for harmonic current emissions class A conforming to IEC 61000-3-2Electrostatic discharge level 4 conforming to IEC 61000-4-2Conducted RF disturbances level 3 conforming to IEC 61000-4-6Magnetic field at power frequency level 4 conforming to IEC 61000-4-8Conducted and radiated emissions class B conforming to EN 55022 |
|---|---|
| IP degree of protection: | IP52 front: conforming to IEC 60529IP30 body: conforming to IEC 60529 |
| Relative humidity: | 5...95 % at 50 °C |
| Pollution degree: | 2 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Operating altitude: | 2000 m |
| Compatibility code: | PM5320 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480614019 |
|---|
