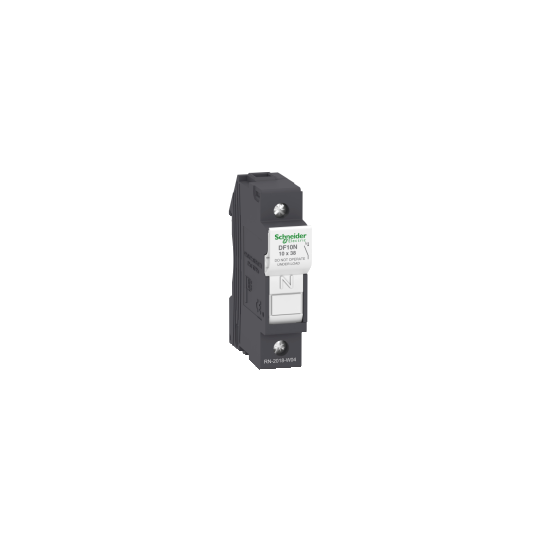

PORTE-FUS N 32A POUR FUSIBLE 10 X 38 MM - DF10N
SKU : DF10N
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
PORTE-FUS N 32A POUR FUSIBLE 10 X 38 MM - DF10N
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys DF |
| Product or component type: | Fuse-disconnector |
| Device short name: | DF10 |
| Poles description: | 1N |
| Mounting support: | Rail |
|---|---|
| Mounting position: | Vertical +/- 23° |
| Control type: | Toggle |
| [Ie] rated operational current: | 32 A for power circuit |
| [Uimp] rated impulse withstand voltage: | 6 kV |
| Fire resistance: | 960 °C conforming to IEC 60695-2-1 |
| [Ipk] rated peak withstand current: | 15 kA with tubular links conforming to IEC 60269-1 |
| Short-circuit withstand: | 120 kA 400 V conforming to IEC 60947-3120 kA 500 V conforming to IEC 60947-3 |
| Fuse size: | 10 x 38 mm |
| Fuse type: | AMGG |
| [Ui] rated insulation voltage: | 690 V for power circuit AC690 V for power circuit DC |
| Connections - terminals: | 1 solid cable(s) 1.5...16 mm² on screw clamp terminals for power circuit2 solid cable(s) 1.5...6 mm² on screw clamp terminals for power circuit1 flexible cable(s) 1.5...10 mm² without cable end on screw clamp terminals for power circuit2 flexible cable(s) 1.5...6 mm² without cable end on screw clamp terminals for power circuit1 flexible cable(s) 1.5...10 mm² with cable end on screw clamp terminals for power circuit2 flexible cable(s) 1.5...6 mm² with cable end on screw clamp terminals for power circuit |
| Tightening torque: | 2.2 N.m power circuit |
| Quantity per set: | Set of 12 |
| Standards: | IEC 60947-3UL 512CSA C22.2 No 39 |
|---|---|
| Product certifications: | UR |
| IP degree of protection: | IP20 conforming to IEC 60529 |
| Protective treatment: | TH |
| Ambient air temperature for storage: | -40...80 °C |
| Ambient air temperature for operation: | -20...60 °C with derating |
| Height: | 88.5 mm |
| Width: | 17.5 mm |
| Depth: | 64 mm |
| Product weight: | 0.071 kg |
| Warranty period: | 18 months |
| Code EAN: | 3389119407212 |
|---|---|
| Contexte: |
Modular design for a wide variety of needs:
Different cylindrical cartridge fuses size:
Characteristics :
|
