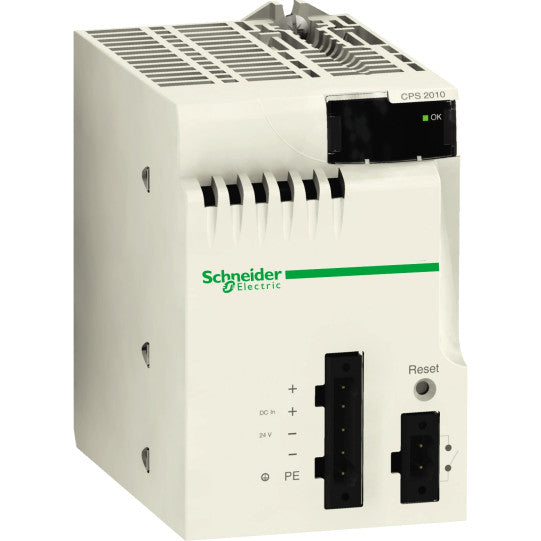

power supply module X80 - 24 V DC - 16.8 W - BMXCPS2010
SKU : BMXCPS2010
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
power supply module X80 - 24 V DC - 16.8 W - BMXCPS2010
DESCRIPTION
| Range of product: | Modicon X80 |
|---|---|
| Product or component type: | Power supply module |
| Product compatibility: | Not compatible with BMEXBP..02 |
| Primary voltage: | 24 V isolated |
| Supply circuit type: | DC |
| Secondary power: | 16.8 W 24 V DC I/O module power supply and processor8.3 W 3.3 V DC I/O module logic power supply |
| Primary voltage limit: | 18...31.2 V |
|---|---|
| Input current: | 1 A 24 V |
| Inrush current: | 30 A 24 V |
| I²t on activation: | 0.6 A².s 24 V |
| It on activation: | 0.15 A.s 24 V |
| Protection type: | Internal fuse not accessible for primary circuitOverload protection for secondary circuit, 24 V sensor power supplyOvervoltage protection for secondary circuit, 24 V sensor power supplyShort-circuit protection for secondary circuit, 24 V sensor power supply |
| Current at secondary voltage: | 0.7 A 24 V DC I/O module power supply and processor2.5 A 3.3 V DC I/O module logic power supply |
| Maximum power dissipation in W: | 8.5 W |
| Status LED: | 1 LED (green)rack voltage OK |
| Control type: | RESET push-button cold restart |
| Electrical connection: | 1 connector 2 pin(s)alarm relay1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor |
| Maximum cable distance between devices: | 20 m power supply cable copper 1.5 mm²30 m power supply cable copper 2.5 mm² |
| Insulation resistance: | >= 10 MOhm primary/ground>= 10 MOhm primary/secondary |
| Product weight: | 0.29 kg |
| Immunity to microbreaks: | 1 ms |
|---|---|
| Dielectric strength: | 1500 V primary/ground1500 V primary/secondary |
| Vibration resistance: | 3 gn |
| Shock resistance: | 30 gn |
| IP degree of protection: | IP20 |
| Directives: | 2014/35/EU - low voltage directive2014/30/EU - electromagnetic compatibility |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | 0...60 °C |
| Relative humidity: | 5...95 % at 55 °C without condensation |
| Protective treatment: | TC |
| Operating altitude: | 0...2000 m2000...5000 m with derating factor |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3595863909005 |
|---|
