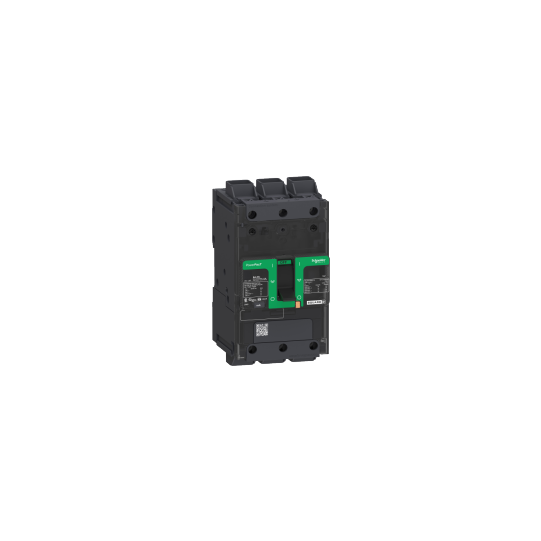

PowerPact-circuit breaker-60A 3P AC 35kA at 480/440V(UL/IEC)-TMD-EverLink lug - BGL36060LU
SKU : BGL36060LU
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
PowerPact-circuit breaker-60A 3P AC 35kA at 480/440V(UL/IEC)-TMD-EverLink lug - BGL36060LU
DESCRIPTION
| Range: | PowerPact |
|---|---|
| Product name: | PowerPact B |
| Device short name: | BG 060 |
| Product or component type: | Circuit breaker |
| Device application: | Distribution |
| [In] rated current: | 60 A |
|---|---|
| Poles description: | 3P |
| Protected poles description: | 3t |
| Control type: | Toggle |
| Breaking capacity code: | G |
| Breaking capacity: | 65 kA at 208Y/120 V AC 50/60 Hz conforming to UL 489 65 kA at 240 V AC 50/60 Hz conforming to UL 489 35 kA at 480/277 V AC 50/60 Hz conforming to UL 489 35 kA at 480 V AC 50/60 Hz conforming to UL 489 20 kA at 250 V DC conforming to UL 489 18 kA at 600Y/347 V AC 50/60 Hz conforming to UL 489 |
| [Ue] rated operational voltage: | 525 V AC 50/60 Hz conforming to UL 489 |
| Network frequency: | 50/60 Hz |
| [Ics] rated service breaking capacity: | 65 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-218 kA at 500...525 V AC 50/60 Hz conforming to IEC 60947-235 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-235 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage: | 8 kV conforming to IEC 60947-2 |
| Trip unit technology: | Thermal-magneticTM-D, |
| Continuous current rating: | 80 % |
| [Ui] rated insulation voltage: | 800 V conforming to IEC 60947-2 |
| Trip unit name: | TM-D |
| Suitability for isolation: | Yes conforming to IEC 60947-2 |
| Utilisation category: | Category A |
| Mechanical durability: | 15000 cycles conforming to IEC 947-1 Annex K ed 5.2 |
| Electrical durability: | 10000 cycles conforming to IEC 947-1 Annex K ed 5.2 at 440 V In |
| Connection pitch: | 27 mm |
| AWG gauge: | AWG 6...AWG 2/0 fine stranded aluminium/copperAWG 14...AWG 3/0 rigid or stranded aluminium/copper |
| Local signalling: | Presence of auxiliary contacts: flag (green) |
| Mounting mode: | Clip-on (35 mm symmetrical DIN rail)By screws (plate) |
| Electrical connection: | Everlink lug lineEverlink lug load |
| Tightening torque: | 5 N.m for 2.5...16 mm² (AWG 14...AWG 4)9 N.m for 25...95 mm² (AWG 3...AWG 3/0) |
| Number of slots: | 1 slot(s) for auxiliary switch OF (plug-in)1 slot(s) for voltage release MN or MX (plug-in)1 slot(s) for alarm switch SD (plug-in) |
| Wire stripping length: | 20 mm |
| Colour: | Grey (RAL 7016) |
| 9 mm pitches: | 9 |
| Height: | 137 mm |
| Width: | 81 mm |
| Depth: | 80 mm |
| Net weight: | 1.074 kg |
| Quantity per set: | Set of 1 |
| Circuit breaker application: | HACR rated |
| Quality labels: | CE |
|---|---|
| Standards: | EN/IEC 60947-5-1NEMA AB1UL 489CSA C22.2 No 5NMX J-266EN/IEC 60947-2GB 14048.2 |
| Product certifications: | ULIECCCCEACCSANOM |
| IP degree of protection: | Front cover: IP40 conforming to IEC 60529 |
| IK degree of protection: | IK07 conforming to IEC 62262 |
| Pollution degree: | 3 conforming to IEC 60947-1 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -50...85 °C |
| Operating altitude: | 2000 m without derating5000 m with derating |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606481149435 |
|---|
