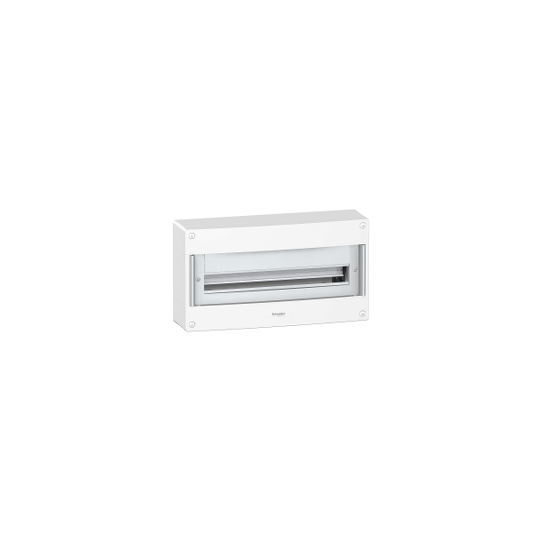

Pragma surface enclosure - IP30 - 1 x 24 modules - without door - PRA20124
SKU : PRA20124
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Pragma surface enclosure - IP30 - 1 x 24 modules - without door - PRA20124
DESCRIPTION
| Range of product: | Pragma |
|---|---|
| Range: | Pragma |
| Product or component type: | Enclosure |
| Enclosure type: | Distribution enclosure |
| Width: | 550 mm outside: |
| Height: | 300 mm |
| Depth: | 148 mm |
| Number of 18 mm modules per row: | 24 |
| Number of horizontal rows: | 1 |
| Electrical insulation class: | Double insulationClass II |
| Provided equipment: | 2 x terminal block1 x identification label1 x marking kit1 x blanking plate strip |
| Type of front cover: | Without |
| Enclosure mounting: | Surface |
|---|---|
| 9 mm pitches: | 48 |
| Total number of 18 mm modules: | 24 |
| Power dissipation in W: | 46 W |
| [In] rated current: | 125 A |
| [Ui] rated insulation voltage: | 400 V |
| Type of rail: | Multifix |
| Mounting plate description: | Without mounting plate |
| Cable entry: | Removable platesCut-out platesTrunkingCable or tube |
| Number of terminal blocks: | 1 earth (Quick) with 22 outgoers1 neutral (Quick) with 23 outgoers |
| Distribution block outgoers: | 1 x 25 mm² for earth20 x 6 mm² for earth1 x 50 mm² for earth1 x 50 mm² for neutral2 x 25 mm² for neutral20 x 6 mm² for neutral |
| Enclosure material: | Back part: technoplasticFront face: technoplasticBack part: metalFront face: metal |
| Colour: | Enclosure: white (RAL 9016)Front face: grey (RAL 7004) |
| Market segment: | Small commercialResidential |
| Targeted country: | BalticSwedenFinlandCzech republicHungaryGreeceRussia |
| Embedding depth: | 0 mm |
| Internal depth: | 120 mm |
| Fire resistance: | Back part: 650 °CFront face: 650 °C |
|---|---|
| IP degree of protection: | IP30 without doorIP40 with door |
| IK degree of protection: | IK08 without doorIK09 with door |
| Overvoltage category: | II |
| Ambient air temperature for operation: | -25...60 °C |
| Standards: | IEC 60670-1IEC 60670-24IEC 61439-1IEC 61439-3 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3303432372521 |
|---|
