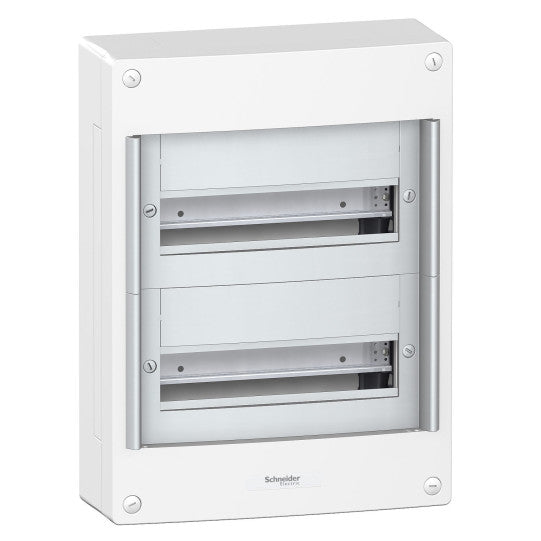

Pragma surface enclosure - IP30 - 2 x 13 modules - without door - PRA13652
SKU : PRA13652
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Pragma surface enclosure - IP30 - 2 x 13 modules - without door - PRA13652
DESCRIPTION
| Range of product: | Pragma |
|---|---|
| Range: | Pragma |
| Product or component type: | Enclosure |
| Enclosure type: | Distribution enclosure |
| Width: | 336 mm |
| Height: | 450 mm |
| Depth: | 123 mm |
| Number of 18 mm modules per row: | 13 |
| Number of horizontal rows: | 2 |
| Electrical insulation class: | Class IIDouble insulation |
| Provided equipment: | 1 x identification label1 x marking kit1 x blanking plate strip3 x terminal block |
| Type of front cover: | Without |
| Enclosure mounting: | Surface |
|---|---|
| 9 mm pitches: | 26 |
| Total number of 18 mm modules: | 26 |
| Power dissipation in W: | 40 W |
| [In] rated current: | 63 A |
| Type of rail: | DIN |
| Cable entry: | TrunkingRemovable platesCable or tubeCut-out plates |
| Comb busbar and distribution block compatibility: | XE compatible |
| Number of terminal blocks: | 2 phase / neutral (Quick) with 7 outgoers1 earth (Quick) with 24 outgoers |
| Distribution block outgoers: | 3 x 25 mm² for earth21 x 4 mm² for earth2 x 35 mm² for phase / neutral12 x 16 mm² for phase / neutral |
| Enclosure material: | Back part: technoplasticFront face: technoplastic |
| Colour: | Enclosure: white (RAL 9016)Front face: white (RAL 9016) |
| Targeted country: | France |
| Fire resistance: | Back part: 750 °CFront face: 750 °C |
|---|---|
| IP degree of protection: | IP30 without doorIP40 with door |
| IK degree of protection: | IK08 without doorIK09 with door |
| Overvoltage category: | II |
| Ambient air temperature for operation: | -25...60 °C |
| Standards: | IEC 60670-1IEC 60670-24IEC 61439-1IEC 61439-3 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3303432359416 |
|---|---|
| Contexte: | Pragma Evolution est une gamme complète de coffrets modulaires 13/18/24 modules.
|
