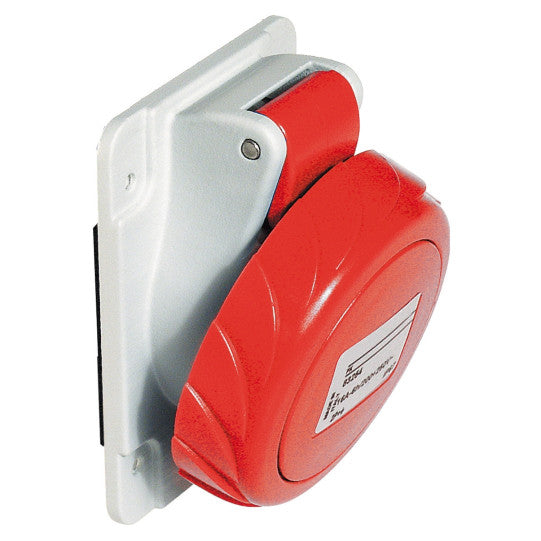

PratiKa industrial socket - 125 A - 3P + N + E - 380...415 V AC - IP67 - 81295
DESCRIPTION
| Range: | PratiKa |
|---|---|
| Product name: | PratiKa socket |
| Product or component type: | Socket |
| Device short name: | PratiKa socket |
| Plug, socket category: | Low voltage |
| Poles description: | 3P + N + E |
| Network type: | AC |
| Outlet standard: | Industrial |
| Mounting mode: | Panel-mounted |
|---|---|
| Plug, socket, control station shape: | Angled |
| [In] rated current: | 125 A |
| [Ue] rated operational voltage: | 380...415 V |
| Network frequency: | 50/60 Hz |
| Ground lug clockwise position: | 6 h |
| Plug, socket material: | Housing: self-extinguishing engineering polymer |
| Contacts material: | Pins: stainless steelSleeves: nickel plated brassSprings: stainless steel |
| Connections - terminals: | Captive screws, completely loosened |
| Cable cross section: | 16...70 mm² |
| Product weight: | 1.342 kg |
| Base dimension: | 110 x 114 mm |
| Height: | 114 mm |
| Width: | 110 mm |
| Depth: | 166 mm |
| Colour: | Grey (RAL 7035) |
| Voltage colour: | Red |
| Market segment: | Small commercialResidential |
| Compatibility code: | PratiKa socket |
| Standards: | EN 60309-1EN 60309-2 |
|---|---|
| IP degree of protection: | IP67 conforming to IEC 60529 |
| IK degree of protection: | IK08 conforming to EN 62262 |
| Fire resistance: | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity: | 50 % at 40 °C70 % at 30 °C90 % at 20 °C |
| Ambient air temperature for operation: | 35 °C ( 86400 s ) |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3303430812951 |
|---|
