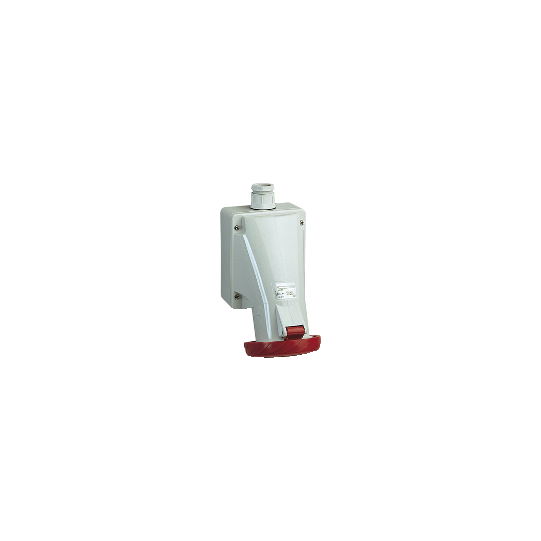

PratiKa industrial socket - 32 A - 3P + E - 380...415 V AC - IP67 - 83170
SKU : 83170
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
PratiKa industrial socket - 32 A - 3P + E - 380...415 V AC - IP67 - 83170
DESCRIPTION
| Range: | PratiKa |
|---|---|
| Product name: | PratiKa socket |
| Product or component type: | Socket |
| Device short name: | PratiKa socket |
| Plug, socket category: | Low voltage |
| Poles description: | 3P + E |
| Network type: | AC |
| Outlet standard: | Industrial |
| Mounting mode: | Wall-mounted |
|---|---|
| Plug, socket, control station shape: | Angled |
| [In] rated current: | 32 A |
| [Ue] rated operational voltage: | 380...415 V |
| Network frequency: | 50/60 Hz |
| Ground lug clockwise position: | 6 h |
| Plug, socket material: | Housing: self-extinguishing engineering polymer |
| Contacts material: | Pins: stainless steelSleeves: nickel plated brassSprings: stainless steel |
| Connections - terminals: | Captive screws, completely loosened |
| Cable cross section: | 2.5...10 mm² |
| Cable outer diameter: | 11.5...21 mm |
| Cable entry: | Cable gland |
| Thread type: | Pg 21 |
| Product weight: | 0.531 kg |
| Base dimension: | 106 x 130 mm |
| Height: | 191 mm |
| Width: | 106 mm |
| Depth: | 148 mm |
| Colour: | Grey (RAL 7035) |
| Voltage colour: | Red |
| Market segment: | Small commercial |
| Compatibility code: | PratiKa socket |
| Standards: | EN 60309-1EN 60309-2 |
|---|---|
| IP degree of protection: | IP67 conforming to IEC 60529 |
| IK degree of protection: | IK08 conforming to EN 62262 |
| Fire resistance: | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity: | 50 % at 40 °C70 % at 30 °C90 % at 20 °C |
| Ambient air temperature for operation: | 35 °C ( 86400 s ) |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3303430831709 |
|---|
