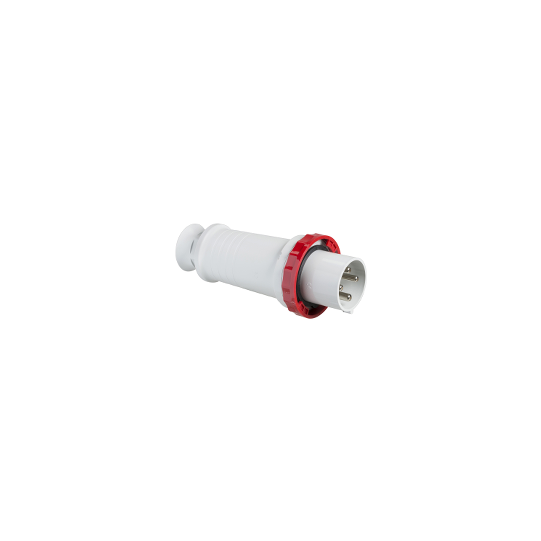

PratiKa wander plug - straight - 125 A - 3P + E - 380...415 V AC - IP67 - 81394
SKU : 81394
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
PratiKa wander plug - straight - 125 A - 3P + E - 380...415 V AC - IP67 - 81394
DESCRIPTION
| Range: | PratiKa |
|---|---|
| Product name: | PratiKa plug |
| Product or component type: | Wander plug |
| Device short name: | PratiKa plug |
| Plug, socket category: | Low voltage |
| Poles description: | 3P + E |
| Network type: | AC |
| Outlet standard: | Industrial |
| Plug, socket, control station shape: | Straight |
|---|---|
| [In] rated current: | 125 A |
| [Ue] rated operational voltage: | 380...415 V |
| Network frequency: | 50/60 Hz |
| Ground lug clockwise position: | 6 h |
| Plug, socket material: | Housing: self-extinguishing engineering polymer |
| Contacts material: | Pins: nickel plated brass |
| Connections - terminals: | Captive screws |
| Cable cross section: | 16...70 mm² |
| Cable outer diameter: | 26...48 mm |
| Cable entry: | Cable gland |
| Thread type: | Pg 48 |
| Product weight: | 1.322 kg |
| Height: | 325 mm |
| Width: | 131 mm |
| Depth: | 131 mm |
| Colour: | Grey (RAL 7035) |
| Voltage colour: | Red |
| Market segment: | Small commercial |
| Compatibility code: | PratiKa plug |
| Standards: | IEC 60309-2IEC 60309-1 |
|---|---|
| IP degree of protection: | IP67 conforming to IEC 60529 |
| IK degree of protection: | IK08 conforming to EN 62262 |
| Fire resistance: | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity: | 50 % at 40 °C70 % at 30 °C90 % at 20 °C |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | 35 °C ( 86400 s ) -25...40 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3303430813941 |
|---|
