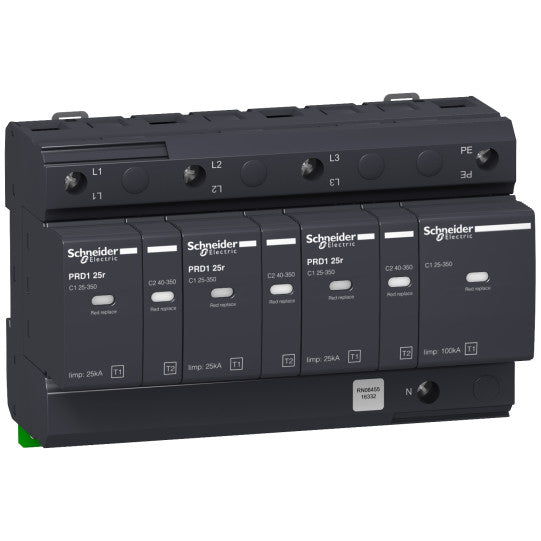

PRD1 25r modular surge arrester - 3 poles + N - 350V - with remote transfer - 16332
SKU : 16332
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
PRD1 25r modular surge arrester - 3 poles + N - 350V - with remote transfer - 16332
DESCRIPTION
| Range of product: | PRD1 |
|---|---|
| Range: | Multi 9 |
| Product name: | Multi 9 PRD1 |
| Product or component type: | Surge arrester with pluggable cartridge |
| Device short name: | PRD1 25r |
| Device application: | Distribution |
| Poles description: | 3P + N |
| Remote signalling: | With |
| Signal contacts composition: | 1 SD (1 C/O) |
| Surge arrester type: | Electrical distribution network |
| Earthing system: | TN-STT |
| Surge arrester class type: | Type 1 + 2 |
|---|---|
| Surge arrester technology: | Spark gapMOV |
| [Ue] rated operational voltage: | 230/400 V AC (+/- 10 %) at 50/60 Hz |
| Nominal discharge current: | Common mode: 100 kA (N/PE)Differential mode: 25 kA (L/N) |
| [Iimp] impulse current: | Common mode: 100 kA N/PE 50 A.sDifferential mode: 25 kA L/N 12.5 A.s |
| [Uc] maximum continuous operating voltage: | Differential mode: 350 V L/NCommon mode: 350 V N/PE |
| Maximum [Up] voltage protection level: | Common mode Differential mode |
| [If] follow current: | 25 kA differential mode L/N0.1 kA common mode N/PE |
| Disconnector device type: | Associated fuse gG 315 A standardAssociated circuit breaker Compact NSX100B 100 A curve C - Icu 10 kAAssociated circuit breaker Compact NSX100B 100 A curve C - Icu 15 kAAssociated circuit breaker Compact NSX100B 100 A curve C - Icu 25 kA |
| Signalling circuit voltage: | 1 A/250 V AC 50/60 Hz |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 16 |
| Height: | 90 mm |
| Width: | 142.8 mm |
| Depth: | 70 mm |
| Product weight: | 1.43 kg |
| Colour: | Anthracite grey (RAL 7016) |
| Material: | PBT (polybutylene terephthalate) |
| Response time: | |
| Connections - terminals: | Tunnel type terminal (downside) 2.5...35 mm²Tunnel type terminal (upside) 2.5...35 mm² |
| Tightening torque: | 4.5 N.m |
| Impulse current: | 25 kA |
| Compatibility code: | PRD1_25r |
| Market segment: | Small commercial |
| Standards: | EN 61643-11:2012IEC 61643-11:2011 |
|---|---|
| Product certifications: | CE |
| Quality labels: | KEMA-KEUR |
| IP degree of protection: | IP40 on front face: conforming to IEC 60529IP20 built-in: conforming to IEC 60529 |
| IK degree of protection: | IK05 conforming to IEC 62262 |
| Relative humidity: | 5...90 % |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...80 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3606480060427 |
|---|
