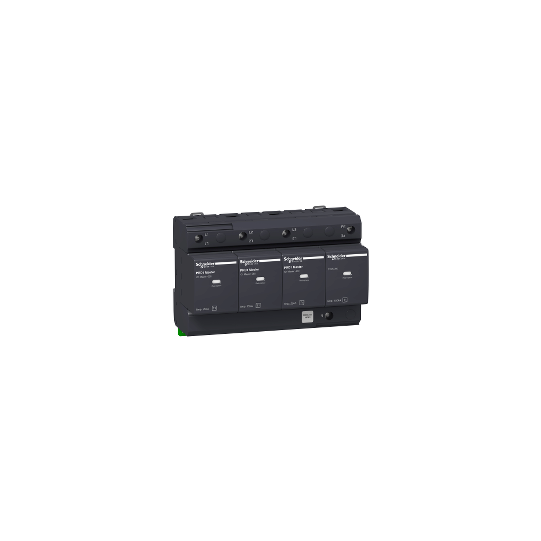

PRD1 Master modular surge arrester - 3 poles + N - 350V - with remote transfer - 16363
SKU : 16363
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
PRD1 Master modular surge arrester - 3 poles + N - 350V - with remote transfer - 16363
DESCRIPTION
| Range of product: | PRD1 Master |
|---|---|
| Range: | Acti9 |
| Product name: | Acti9 PRD1 Master |
| Product or component type: | Surge arrester with pluggable cartridge |
| Device short name: | PRD1 Master |
| Device application: | Distribution |
| Standards: | EN 61643-11:2012IEC 61643-11:2011 |
| Product certifications: | CE |
| Quality labels: | KEMA-KEUR |
| Poles description: | 3P + N |
| Remote signalling: | With |
| Signal contacts composition: | 1 SD (1 C/O) |
| Surge arrester type: | Electrical distribution network |
| Earthing system: | TTTN-S |
| Surge arrester class type: | Type 1 |
|---|---|
| Surge arrester technology: | Spark gap |
| [Ue] rated operational voltage: | 230/400 V AC (+/- 10 %) at 50/60 Hz |
| Nominal discharge current: | Common mode: 100 kA (N/PE)Differential mode: 25 kA (L/N) |
| [Iimp] impulse current: | Common mode: 100 kA N/PE 50 A.sDifferential mode: 25 kA L/N 12.5 A.s |
| [Uc] maximum continuous operating voltage: | Differential mode: 350 V L/NCommon mode: 350 V N/PE |
| Maximum [Up] voltage protection level: | Common mode Differential mode |
| [Ifi] follow current: | 0.1 kA common mode N/PE50 kA differential mode L/N |
| Disconnector device type: | Associated fuse gG 315 A standardAssociated circuit breaker Compact NSX100F 100 A curve C - Icu 36 kAAssociated circuit breaker Compact NSX100N 100 A curve C - Icu 50 kA |
| Signalling circuit voltage: | 1 A/250 V AC 50/60 Hz |
| Mounting mode: | Clip-on (DIN rail) |
| 9 mm pitches: | 16 |
| Height: | 90 mm |
| Width: | 142.8 mm |
| Depth: | 70 mm |
| Net weight: | 1.31 kg |
| Colour: | Anthracite grey (RAL 7016) |
| Material: | PBT (polybutylene terephthalate) |
| Connections - terminals: | Tunnel type terminal (downside) 2.5...35 mm²Tunnel type terminal (upside) 2.5...35 mm² |
| Tightening torque: | 4.5 N.m |
| Impulse current: | 25 kA |
| Compatibility code: | PRD1_Master |
| Market segment: | Small commercial |
| IK degree of protection: | IK05 conforming to IEC 62262 |
|---|---|
| Relative humidity: | 5...90 % |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...80 °C |
| REACh Regulation: | Reference contains Substances of Very High Concern above the thresholdEU RoHS Directive |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480060465 |
|---|
