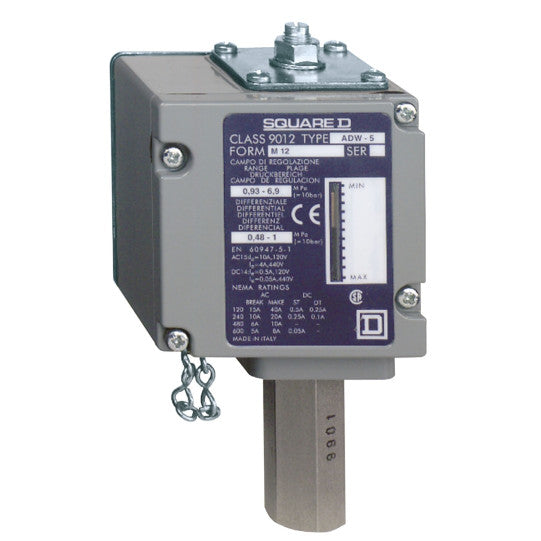

pressure switch ADW 210 bar - adjustable scale 2 thresholds - 1CO - ADW6M129012
SKU : ADW6M129012
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
pressure switch ADW 210 bar - adjustable scale 2 thresholds - 1CO - ADW6M129012
DESCRIPTION
| Range of product: | OsiSense XM |
|---|---|
| Pressure sensor name: | ADW |
| Pressure sensor type: | Electromechanical pressure sensor |
| Product specific application: | For regulation between 2 thresholds |
| Scale type: | Adjustable differential |
| Contacts type and composition: | 1 C/O snap action |
| Cable entry: | 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9...13 mm conforming to NF C 68-300 |
| Fluid connection type: | G 3/8 (female) conforming to ISO 228 |
| Materials in contact with fluid: | Buna NTeflonStainless steelViton |
| Pressure rating: | 210 bar |
| Adjustable range of switching point on falling pressure: | 7...182 bar |
| Adjustable range of switching point on rising pressure: | 28...210 bar |
| Pressure actuator: | Piston with Quad-Ring seal |
| Electrical circuit type: | Control circuit |
| Electrical connection: | Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2.5 mm² |
|---|---|
| Controlled fluid: | Air (-25...120 °C)Hydraulic oil (-25...120 °C)Other fluids (-25...120 °C) |
| Short-circuit protection: | 10 A cartridge fuse, type gG |
| Enclosure material: | Zinc alloy |
| Possible differential minimum at low setting: | 28 bar |
| Possible differential minimum at high setting: | 14 bar |
| Possible differential maximum at low setting: | 21 bar |
| Possible differential maximum at high setting: | 34 bar |
| Maximum permissible pressure - per cycle: | 690 bar |
| Mechanical durability: | 1000000 cycles |
| Setting: | External |
| Local display: | Without |
| Terminals description ISO n°1: | (1-2)NC(3-4)NO |
| Width: | 88 mm |
| Height: | 176 mm |
| Depth: | 68 mm |
| Product weight: | 1.88 kg |
| Protective treatment: | TC |
|---|---|
| Standards: | EN/IEC 60947-5-1CE |
| Product certifications: | EACUL recognizedCSA |
| IP degree of protection: | IP65 conforming to EN/IEC 60529 |
| Ambient air temperature for operation: | -30...85 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3389110665451 |
|---|
