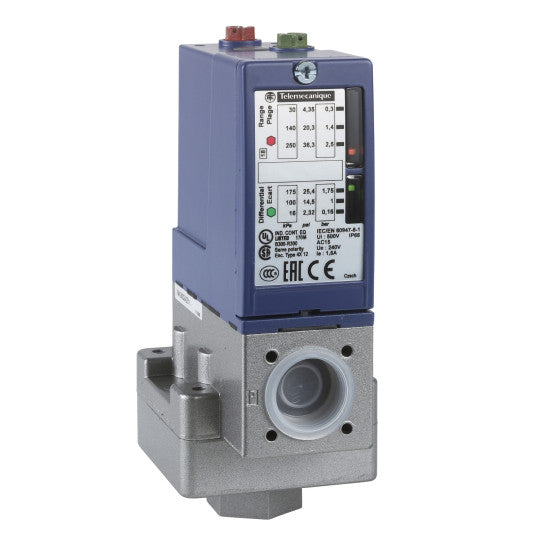

pressure switch XMLB 2.5 bar - adjustable scale 2 thresholds - 1 C/O - XMLB002C2S11
SKU : XMLB002C2S11
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
pressure switch XMLB 2.5 bar - adjustable scale 2 thresholds - 1 C/O - XMLB002C2S11
DESCRIPTION
| Range of product: | OsiSense XM |
|---|---|
| Product or component type: | Electromechanical pressure sensor |
| Pressure sensor type: | Electromechanical pressure sensor |
| Device short name: | XMLB |
| Pressure rating: | 2.5 bar |
| Controlled fluid: | Corrosive fluid (0...160 °C) |
| Fluid connection type: | G 1/4 (female) conforming to ISO 228 |
| Electrical connection: | Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm² |
| AWG gauge: | AWG 20...AWG 14 |
| Cable entry: | Cable gland 9...13 mm |
| Contacts type and composition: | 1 C/O |
| Product specific application: | - |
| Pressure switch type of operation: | Regulation between 2 thresholds |
| Electrical circuit type: | Control circuit |
| Scale type: | Adjustable differential |
| Local display: | With |
| Adjustable range of switching point on rising pressure: | 0.3...2.5 bar |
| Adjustable range of switching point on falling pressure: | 0.14...2.29 bar |
| Possible differential maximum at high setting: | 1.75 bar |
| Maximum permissible accidental pressure: | 9 bar |
| Destruction pressure: | 18 bar |
| Pressure actuator: | Diaphragm |
| Materials in contact with fluid: | 316L stainless steelPTFE |
| Enclosure material: | Zinc alloy |
| [In] rated current: | 3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-11.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-10.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1 |
| Possible differential minimum at low setting: | 0.16 bar (- 0.03 bar, + 0.05 bar) |
|---|---|
| Possible differential minimum at high setting: | 0.21 bar (- 0.03 bar, + 0.05 bar) |
| Maximum permissible pressure - per cycle: | 5 bar |
| Terminal block type: | 4 terminals |
| Maximum operating rate: | 120 cyc/mn |
| Repeat accuracy: | 2 % |
| [Ui] rated insulation voltage: | 300 V conforming to UL 508500 V conforming to EN/IEC 60947-1300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-1 |
| Auxiliary contacts operation: | Snap action |
| Contacts material: | Silver contacts |
| Maximum resistance across terminals: | 25 mOhm conforming to IEC 255-7 category 325 mOhm conforming to NF C 93-050 method A |
| Short-circuit protection: | 10 A cartridge fuse, type gG (gl) |
| Mechanical durability: | 8000000 cycles |
| Setting: | External |
| Terminals description ISO n°1: | (13-14-11-12)OF |
| Height: | 113 mm |
| Depth: | 75 mm |
| Width: | 55 mm |
| Product weight: | 1.015 kg |
| Standards: | CSA C22.2 No 14EN/IEC 60947-5-1UL 508CE |
|---|---|
| Product certifications: | BVLROS (Lloyds register of shipping)CSAULEACCCC |
| Protective treatment: | TC standard version |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Operating position: | Any position |
| Vibration resistance: | 4 gn conforming to IEC 60068-2-6 (f = 30...500 Hz) |
| Shock resistance: | 50 gn conforming to IEC 60068-2-27 |
| Electrical shock protection class: | Class I conforming to IEC 1140Class I conforming to IEC 536Class I conforming to NF C 20-030 |
| IP degree of protection: | IP66 conforming to EN/IEC 60529 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110713466 |
|---|
