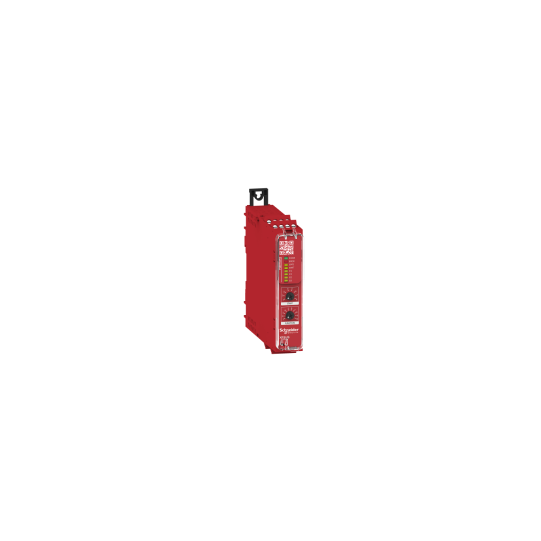

Preventa module Cat.4 features 2*XPSUAF + enabling movement 24vac/dc screw - XPSUS12AP
SKU : XPSUS12AP
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Preventa module Cat.4 features 2*XPSUAF + enabling movement 24vac/dc screw - XPSUS12AP
DESCRIPTION
| Range of product: | Harmony Safety Automation |
|---|---|
| Product or component type: | Safety module |
| Safety module name: | XPSUS |
| Safety module application: | For electrical monitoring of two-hand control stationsMonitoring antivalent contactsFor emergency stop, guard and light curtain monitoringFor enabling switch monitoring |
| Function of module: | Emergency stop button with 2 NC contactsGuard monitoring with 1 or 2 limit switchesMonitoring 2 PNP sensorsMagnetic switch monitoringLight curtain monitoringRFID switchMonitoring of electro-sensitive protection equipment (ESPE)Enabling switch monitoringProximity sensor monitoringMonitoring two-hand control station |
| Safety level: | Can reach PL e/category 4 conforming to ISO 13849-1Can reach SILCL 3 conforming to IEC 62061Can reach SIL 3 conforming to IEC 61508 |
| Safety reliability data: | MTTFd > 30 years conforming to ISO 13849-1Dcavg >= 99 % conforming to ISO 13849-1PFHd = 1.13E-09 conforming to ISO 13849-1HFT = 1 conforming to IEC 62061PFHd = 1.13E-09 conforming to IEC 62061SFF > 99% conforming to IEC 62061HFT = 1 conforming to IEC 61508-1PFHd = 1.13E-09 conforming to IEC 61508-1SFF > 99% conforming to IEC 61508-1Type = B conforming to IEC 61508-1 |
| Electrical circuit type: | NC pairPNP pairAntivalent pairOSSD pair |
| Connections - terminals: | Removable screw terminal block, 0.2...2.5 mm² solid or flexibleRemovable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductorRemovable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductorRemovable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezelRemovable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel |
| [Us] rated supply voltage: | 24 V AC - 15...10 %24 V DC - 20...20 % |
| Synchronisation time between inputs: | 0.5 s2 s4 s |
|---|---|
| Type of start: | Automatic/manual/monitored |
| Power consumption in W: | 2 W 24 V DC |
| Power consumption in VA: | 5.0 VA 24 V AC 50/60 Hz |
| Input protection type: | Internal, electronic |
| Auxiliary contact composition: | 2 NO |
| Number of inputs: | 2 safety input 24 V DC 5 mA |
| Maximum line resistance: | 500 Ohm |
| Input compatibility: | Normally closed circuit conforming to ISO 14119XC limit switch conforming to ISO 14119Mechanical contact conforming to ISO 14119Normally closed circuit conforming to ISO 13850Antivalent pair conforming to ISO 14119OSSD pair conforming to IEC 61496-1-2Two-hand control conforming to EN 574/ISO 13851-III ATwo-hand control conforming to EN 574/ISO 13851-III C3-wire proximity sensors PNP |
| [Ie] rated operational current: | 5 A AC-1 for normally open relay contact3 A AC-15 for normally open relay contact5 A DC-1 for normally open relay contact3 A DC-13 for normally open relay contact3 A AC-1 for normally closed relay contact1 A AC-15 for normally closed relay contact3 A DC-1 for normally closed relay contact1 A DC-13 for normally closed relay contact |
| Number of outputs: | 3 on/off configurable pulsed output |
| Input/output type: | Semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related |
| [Ith] conventional free air thermal current: | 8 A |
| Associated fuse rating: | 10 A gG for NO relay output circuit conforming to IEC 60947-1 |
| Minimum output current: | 10 mA for relay output |
| Minimum output voltage: | 12 V for relay output |
| Maximum response time on input open: | 20 ms |
| [Ui] rated insulation voltage: | 250 V (pollution degree 2) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 4 kV overvoltage category II conforming to EN/IEC 60947-1 |
| Local signalling: | LED (green) for power ONLED (red) for errorLED (yellow) for safety output statusLED (yellow) for start inputLED (yellow) for safety input S12LED (yellow) for safety input S13LED (yellow) for safety input S22LED (yellow) for safety input S23 |
| Mounting support: | 35 mm symmetrical DIN rail |
| Depth: | 120 mm |
| Height: | 100 mm |
| Width: | 22.5 mm |
| Net weight: | 0.200 kg |
| Standards: | IEC 60947-5-1IEC 61508-1 functional safety standardIEC 61508-2 functional safety standardIEC 61508-3 functional safety standardIEC 61508-4 functional safety standardIEC 61508-5 functional safety standardIEC 61508-6 functional safety standardIEC 61508-7 functional safety standardISO 13849-1 functional safety standardIEC 62061 functional safety standard |
|---|---|
| Product certifications: | TÜVcULus |
| IP degree of protection: | IP20 (terminals) conforming to EN/IEC 60529IP40 (housing) conforming to EN/IEC 60529IP54 (mounting area) conforming to EN/IEC 60529 |
| Ambient air temperature for storage: | -25...85 °C |
| Relative humidity: | 5...95 % non-condensing |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606489601812 |
|---|
