Prise de courant modulaire 16A 2P+T standard français 250V - A9A15306
SKU : A9A15306
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation

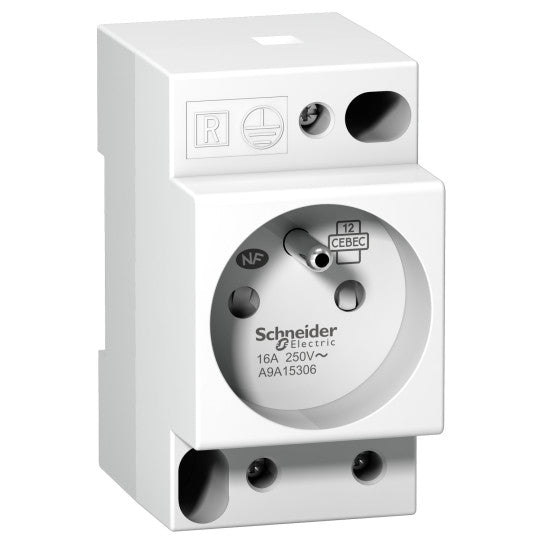

Prise de courant modulaire 16A 2P+T standard français 250V - A9A15306
DESCRIPTION
| Range of product: | Acti 9 |
|---|---|
| Range: | Acti 9 |
| Product name: | Acti 9 iPC |
| Product or component type: | Modular socket-outlet |
| Device short name: | IPC |
| Poles description: | 2P + E |
| Outlet standard: | French |
| [In] rated current: | 16 A |
|---|---|
| [Ue] rated operational voltage: | 250 V AC 50/60 Hz |
| Mounting mode: | Fixed |
| Mounting support: | Symmetrical DIN rail |
| 9 mm pitches: | 5 |
| Height: | 84 mm |
| Width: | 45 mm |
| Depth: | 60 mm |
| Product weight: | 98 g |
| Colour: | White |
| Connections - terminals: | Tunnel type terminal1 cable(s) 6 mm² flexibleTunnel type terminal1 cable(s) 10 mm² rigid |
| Wire stripping length: | 13 mm |
| Tightening torque: | 1.2 N.m |
| Market segment: | Small commercial |
| Compatibility code: | IPC |
| Standards: | IEC 60884-1NF C 15-100NF C 61-314 |
|---|---|
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| IK degree of protection: | IK03 |
| Tropicalisation: | 2 conforming to IEC 60068-1 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...80 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480097768 |
|---|
