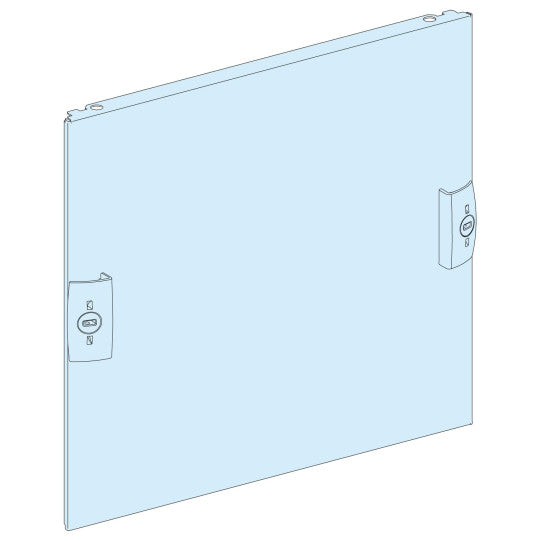

Prisma - System G - Solid front plate - 3 modules - L = 250 mm - 03813
SKU : 3813
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Prisma - System G - Solid front plate - 3 modules - L = 250 mm - 03813
DESCRIPTION
| Range: | Prisma |
|---|---|
| Range of product: | Prisma GPrisma P |
| Product or component type: | Front plate |
| Accessory / separate part category: | Installation accessory |
| Range compatibility: | Prisma G ductPrisma P cubicle |
| Type of front plate: | Plain |
| Installed device: | TeSys: fixed D or K contactors |
| Poles description: | 4 x 4P: modular rail support: D or K contactors |
| Enclosure/cubicle description: | Floor-standing duct - width 300 mmWall-mounted duct - width 300 mmCubicle duct - width 400 mm depth 400 mm |
|---|---|
| Connection position: | Direct connection |
| Number of vertical modules [50 mm]: | 3 |
| Standards: | IEC 61439-2IEC 61439-1 |
| Product certifications: | ASEFA |
| Material: | Steel |
| Surface finish: | SmoothMatt |
| Protective treatment: | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour: | White (RAL 9001) |
| Height: | 150 mm |
| Width: | 250 mm |
| Product weight: | 0.38 kg |
| Quantity per set: | Set of 1 |
| Enclosure/cubicle width: | 300 mm Prisma G floor-standing duct TeSys D or K contactors 300 mm Prisma G wall-mounted duct TeSys D or K contactors 400 mm 400 mm Prisma P cubicle 3 |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic heavy metal free: | Yes |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Environmental Disclosure: | ENVPEP121221EN |
| Halogen content performance: | Halogen free plastic parts product |
| Code EAN: | 3303430038139 |
|---|---|
| Substitution_texte: | Obsolete product |
