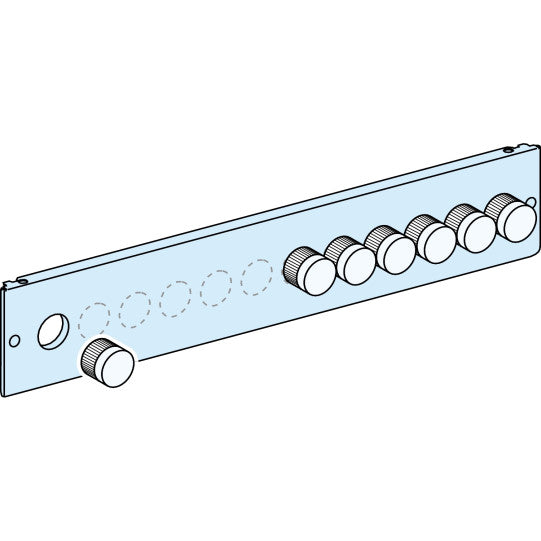

Prisma - Systems G and P - Front plate luminaires diameter 22 - 03914
DESCRIPTION
| Range: | Prisma |
|---|---|
| Range of product: | Prisma GPrisma P |
| Product or component type: | Front plate |
| Accessory / separate part category: | Installation accessory |
| Range compatibility: | Prisma G enclosurePrisma P cubicle |
| Type of front plate: | Cut-out |
| Type of front cover: | Cut-out |
| Installed device: | Human-switchboard interface: 22 mm diameter |
| Enclosure/cubicle description: | Floor-standing enclosure - width 600 mmWall-mounted enclosure - width 600 mmCubicle - width 650 mm depth 400 mm |
|---|---|
| Number of vertical modules [50 mm]: | 2 |
| Standards: | IEC 61439-2IEC 61439-1 |
| Product certifications: | ASEFA |
| Material: | Steel |
| Surface finish: | MattSmooth |
| Protective treatment: | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour: | White (RAL 9001) |
| Height: | 100 mm |
| Width: | 500 mm |
| Product weight: | 0.48 kg |
| Quantity per set: | Set of 1 |
| Enclosure/cubicle width: | 600 mm Prisma G floor-standing enclosure human-switchboard interface 22 mm diameter 12 2600 mm Prisma G wall-mounted enclosure human-switchboard interface 22 mm diameter 12 2650 mm 400 mm Prisma P cubicle human-switchboard interface 22 mm diameter 12 2 |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic heavy metal free: | Yes |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Environmental Disclosure: | ENVPEP121221EN |
| Halogen content performance: | Halogen free plastic parts product |
| Code EAN: | 3303430039143 |
|---|---|
| Substitution_texte: | Obsolete product |
