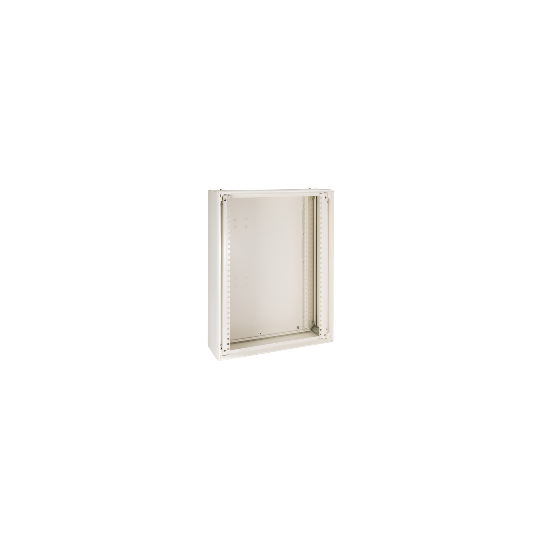

PrismaSeT G Active - Coffret - L600 - IP30 - 15M - RAL9003 - LVS08105
SKU : LVS08105
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
PrismaSeT G Active - Coffret - L600 - IP30 - 15M - RAL9003 - LVS08105
DESCRIPTION
| Range: | PrismaSeT |
|---|---|
| Range of product: | PrismaSeT G |
| Product or component type: | Enclosure |
| Device application: | Low voltage electrical distribution |
| Enclosure type: | Functional enclosure delivered in kit formMetal enclosureIndoor enclosure |
| Enclosure/cubicle description: | Wall-mounted enclosure - width 600 mm |
| Kit composition: | uprights rear plate2 side panel top plate bottom plate |
| Additional information: | Can be combined side by side and one on top of another |
| Type of front cover: | Without to be ordered separately |
| Number of vertical modules [50 mm]: | 15 |
| Number of 18 mm modules per row: | 24 |
| Standards: | IEC 61439-1IEC 61439-2IEC 62208 |
| Product certifications: | ASTAEAC |
| [Ui] rated insulation voltage: | 1000 V on main rear busbars conforming to IEC 61439-2 |
|---|---|
| Network frequency: | 50/60 Hz |
| [In] rated current: | 630 A at 40 °C conforming to IEC 61439-2 |
| Short-circuit current: | 50 kA |
| [Icw] rated short-time withstand current: | 25 kA 1 s conforming to IEC 61439-1 |
| [Ipk] rated peak withstand current: | 53 kA conforming to IEC 61439-1 |
| Electrical insulation class: | Class I |
| Material: | Treated sheet steel |
| Protective treatment: | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish: | TexturedMatt |
| Colour: | White (RAL 9003) |
| Width: | 595 mm |
| Height: | 780 mm |
| Depth: | 205 mm |
| Net weight: | 13 kg |
| Quantity per set: | Set of 1 |
| IP degree of protection: | IP30 with front plateIP40 with doorIP41 with door and canopyIP43 with door, canopy and IP43 gasket |
|---|---|
| IK degree of protection: | IK07 with front plateIK08 with transparent doorIK10 with plain door |
| Mechanical robustness: | Seismic tests - 2.5G conforming to IEC 60068-2-57 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481876911 |
|---|
