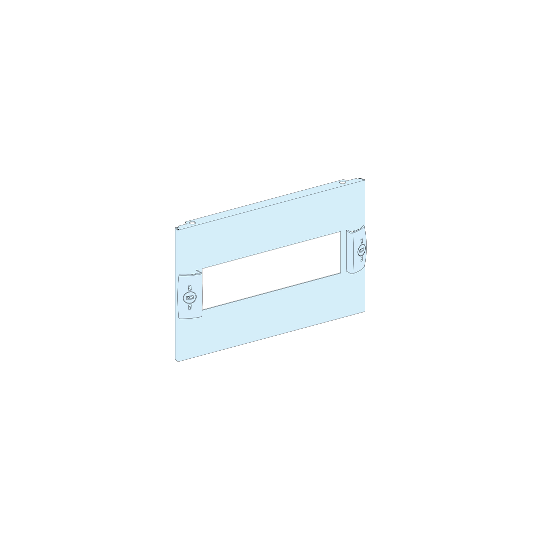

PrismaSeT G Active - Plastron modulaire découpé - 3M - L300-RAL9003 - LVS03213
DESCRIPTION
| Range: | PrismaSeT |
|---|---|
| Range of product: | PrismaSeT GPrismaSeT P |
| Product or component type: | Front plate |
| Accessory / separate part category: | Installation accessory |
| Range compatibility: | PrismaSeT G ductPrismaSeT P cubicle |
| Type of front plate: | ModularCut-out |
| Installed device: | TeSys: fixed GV2LTeSys: fixed GV2LETeSys: fixed GV2METeSys: fixed GV2PTeSys: fixed GV2RTnActi 9: fixed modular device Multi 9: fixed modular device TeSys: fixed GV3 |
| Poles description: | 4 x 3P: modular rail support: GV2L4 x 3P: modular rail support: GV2LE4 x 3P: modular rail support: GV2ME4 x 3P: modular rail support: GV2P4 x 3P: modular rail support: GV2RTn3 x 3P: modular rail support: GV3 |
| Enclosure/cubicle description: | Floor-standing duct - width 300 mmWall-mounted duct - width 300 mmCubicle duct - width 400 mm depth 400 mm |
|---|---|
| Connection position: | Direct connection |
| 9 mm pitches: | 20 |
| Number of 18 mm modules per row: | 10 |
| Number of vertical modules [50 mm]: | 3 |
| Standards: | IEC 61439-2IEC 61439-1 |
| Product certifications: | ASTA |
| Material: | Steel |
| Surface finish: | TexturedMatt |
| Protective treatment: | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour: | White (RAL 9003) |
| Height: | 150 mm |
| Width: | 300 mm |
| Net weight: | 0.32 kg |
| Quantity per set: | Set of 1 |
| Enclosure/cubicle width: | 300 mm PrismaSeT G floor-standing duct TeSys GV2L fixed 3P 4 direct 3300 mm PrismaSeT G wall-mounted duct TeSys GV2L fixed 3P 4 direct 3300 mm PrismaSeT G floor-standing duct TeSys GV2LE fixed 3P 4 direct 3300 mm PrismaSeT G wall-mounted duct TeSys GV2LE fixed 3P 4 direct 3300 mm PrismaSeT G floor-standing duct TeSys GV2ME fixed 3P 4 direct 3300 mm PrismaSeT G wall-mounted duct TeSys GV2ME fixed 3P 4 direct 3300 mm PrismaSeT G floor-standing duct TeSys GV2P fixed 3P 4 direct 3300 mm PrismaSeT G wall-mounted duct TeSys GV2P fixed 3P 4 direct 3300 mm PrismaSeT G floor-standing duct TeSys GV2RTn fixed 3P 4 direct 3300 mm PrismaSeT G wall-mounted duct TeSys GV2RTn fixed 3P 4 direct 3300 mm PrismaSeT G floor-standing duct TeSys GV3 fixed 3P 3 direct 5300 mm PrismaSeT G wall-mounted duct TeSys GV3 fixed 3P 3 direct 5300 mm PrismaSeT G floor-standing duct Acti 9 modular device 300 mm PrismaSeT G wall-mounted duct Acti 9 modular device 400 mm 400 mm PrismaSeT P cubicle Acti 9 modular device 300 mm PrismaSeT G floor-standing duct Multi 9 modular device 300 mm PrismaSeT G wall-mounted duct Multi 9 modular device 400 mm 400 mm PrismaSeT P cubicle Multi 9 modular device |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic heavy metal free: | Yes |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Environmental Disclosure: | ENVPEP2103022_V1 |
| PVC free: | Yes |
| Halogen content performance: | Halogen free plastic parts product |
| Code EAN: | 3606481872722 |
|---|
