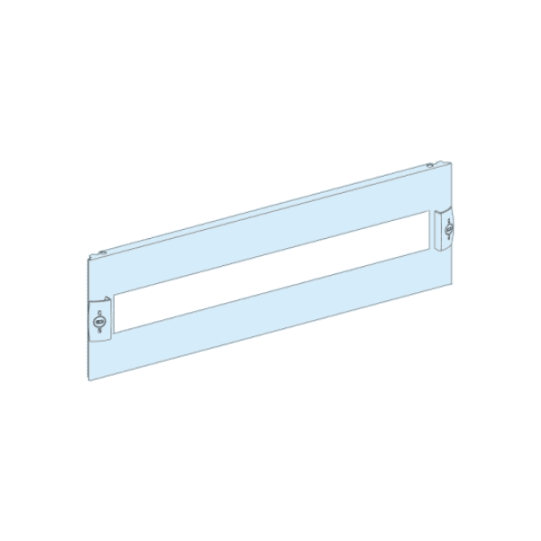

PrismaSeT G Active - Plastron modulaire découpé - 3M - L600-RAL9003 - LVS03203
DESCRIPTION
| Range: | PrismaSeT |
|---|---|
| Range of product: | PrismaSeT GPrismaSeT P |
| Product or component type: | Front plate |
| Accessory / separate part category: | Installation accessory |
| Range compatibility: | PrismaSeT G enclosurePrismaSeT P cubiclePrismaSeT Pack 160 enclosurePrismaSeT Pack 250 enclosure |
| Type of front plate: | Cut-outModular |
| Installed device: | TeSys: fixed GV2LTeSys: fixed GV2LETeSys: fixed GV2METeSys: fixed GV2PTeSys: fixed GV2RTnVigilohm: IM20Vigilohm: IM20HVigilohm: fixed IM9Vigilohm: IM9Vigilohm: fixed IM9-OLVigilohm: IM9-OLActi 9: measurement deviceMulti 9: measurement deviceActi 9: fixed modular device Multi 9: fixed modular device Vigirex: RH10Vigirex: RH197MVigirex: RH21Vigirex: RH99 |
| Poles description: | 9 x 3P: modular rail support: GV2L9 x 3P: modular rail support: GV2LE9 x 3P: modular rail support: GV2ME9 x 3P: modular rail support: GV2P9 x 3P: modular rail support: GV2RTn |
| Enclosure/cubicle description: | Floor-standing enclosure - width 600 mmWall-mounted enclosure - width 600 mmCubicle - width 650 mm depth 400 mmPack enclosure - width 555 mmPack enclosure - width 600 mm |
|---|---|
| 9 mm pitches: | 48 |
| Number of 18 mm modules per row: | 24 |
| Number of vertical modules [50 mm]: | 3 |
| Standards: | IEC 61439-1IEC 61439-2 |
| Product certifications: | ASTA |
| Material: | Steel |
| Surface finish: | MattTextured |
| Protective treatment: | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour: | White (RAL 9003) |
| Height: | 150 mm |
| Width: | 500 mm |
| Net weight: | 0.54 kg |
| Quantity per set: | Set of 1 |
| Enclosure/cubicle width: | 600 mm PrismaSeT G floor-standing enclosure TeSys GV2L fixed 3P 9 direct 3600 mm PrismaSeT G wall-mounted enclosure TeSys GV2L fixed 3P 9 direct 3650 mm 400 mm PrismaSeT P cubicle TeSys GV2L fixed 3P 9 direct 3600 mm PrismaSeT G floor-standing enclosure TeSys GV2LE fixed 3P 9 direct 3600 mm PrismaSeT G wall-mounted enclosure TeSys GV2LE fixed 3P 9 direct 3650 mm 400 mm PrismaSeT P cubicle TeSys GV2LE fixed 3P 9 direct 3600 mm PrismaSeT G floor-standing enclosure TeSys GV2ME fixed 3P 9 direct 3600 mm PrismaSeT G wall-mounted enclosure TeSys GV2ME fixed 3P 9 direct 3650 mm 400 mm PrismaSeT P cubicle TeSys GV2ME fixed 3P 9 direct 3600 mm PrismaSeT G floor-standing enclosure TeSys GV2P fixed 3P 9 direct 3600 mm PrismaSeT G wall-mounted enclosure TeSys GV2P fixed 3P 9 direct 3650 mm 400 mm PrismaSeT P cubicle TeSys GV2P fixed 3P 9 direct 3600 mm PrismaSeT G floor-standing enclosure TeSys GV2RTn fixed 3P 9 direct 3600 mm PrismaSeT G wall-mounted enclosure TeSys GV2RTn fixed 3P 9 direct 3650 mm 400 mm PrismaSeT P cubicle TeSys GV2RTn fixed 3P 9 direct 3600 mm PrismaSeT G floor-standing enclosure Vigilohm 4 3600 mm PrismaSeT G wall-mounted enclosure Vigilohm 4 3600 mm PrismaSeT G floor-standing enclosure Vigilohm fixed 6 3600 mm PrismaSeT G wall-mounted enclosure Vigilohm fixed 6 3650 mm 400 mm PrismaSeT P cubicle Vigilohm 6 3650 mm 400 mm PrismaSeT P cubicle Acti 9 measurement device 3650 mm 400 mm PrismaSeT P cubicle Multi 9 measurement device 3600 mm PrismaSeT G floor-standing enclosure Acti 9 modular device 600 mm PrismaSeT G wall-mounted enclosure Acti 9 modular device 650 mm 400 mm PrismaSeT P cubicle Acti 9 modular device 600 mm PrismaSeT G floor-standing enclosure Multi 9 modular device 600 mm PrismaSeT G wall-mounted enclosure Multi 9 modular device 650 mm 400 mm PrismaSeT P cubicle Multi 9 modular device 600 mm PrismaSeT G floor-standing enclosure Vigirex 8 direct 3600 mm PrismaSeT G wall-mounted enclosure Vigirex 8 direct 3650 mm 400 mm PrismaSeT P cubicle Vigirex 8 3650 mm 400 mm PrismaSeT P cubicle Vigirex 6 3555 mm Pack 160 Pack enclosure TeSys GV2L fixed 3P 9 direct 3555 mm Pack 160 Pack enclosure TeSys GV2LE fixed 3P 9 direct 3555 mm Pack 160 Pack enclosure TeSys GV2ME fixed 3P 9 direct 3555 mm Pack 160 Pack enclosure TeSys GV2P fixed 3P 9 direct 3555 mm Pack 160 Pack enclosure TeSys GV2RTn fixed 3P 9 direct 3555 mm Pack 160 Pack enclosure Vigilohm 4 3555 mm Pack 160 Pack enclosure Vigilohm fixed 6 3600 mm Prisma Pack 250 Pack enclosure Acti 9 modular device 600 mm Prisma Pack 250 Pack enclosure Multi 9 modular device 555 mm Pack 160 Pack enclosure Vigirex 8 direct 3 |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic heavy metal free: | Yes |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Environmental Disclosure: | ENVPEP2103021_V1 |
| PVC free: | Yes |
| Halogen content performance: | Halogen free plastic parts product |
| Code EAN: | 3606481866325 |
|---|
