PrismaSeT P Active - Liaison JdB.V NSX100/250 - horizont. fixe maneton - 4P - LVS04424
SKU : LVS04424
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation

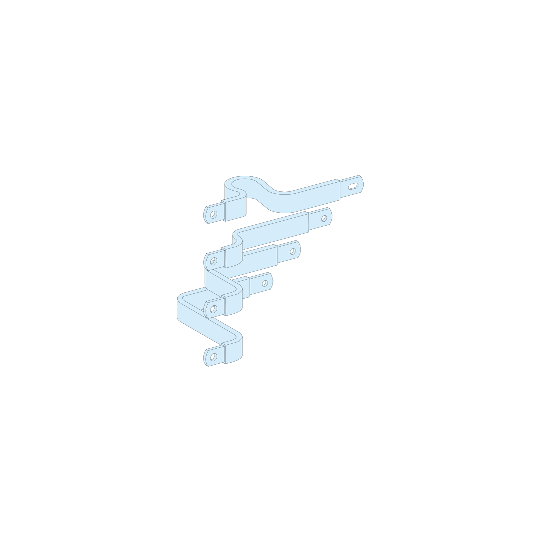

PrismaSeT P Active - Liaison JdB.V NSX100/250 - horizont. fixe maneton - 4P - LVS04424
DESCRIPTION
| Range: | PrismaSeT |
|---|---|
| Range of product: | PrismaSeT P |
| Product or component type: | Connection |
| Range compatibility: | PrismaSeT P enclosure |
| Accessory / separate part category: | Connection accessory |
| Standards: | IEC 61439-2, inside enclosureIEC 61439-1, inside enclosure |
| Product certifications: | ASTA |
| Cubicle-device connection: | Linergy busbar |
|---|---|
| Poles description: | 4P |
| Enclosure/cubicle description: | Cubicle - width 650 mm |
| Installed device: | ComPact: fixed NSX100...160 with earth leakage protection - control: toggle horizontal installationComPact: fixed NSX250 with earth leakage protection - control: toggle horizontal installationComPact: fixed NSX100...160 without earth leakage protection - control: toggle horizontal installationComPact: fixed NSX250 without earth leakage protection - control: toggle horizontal installation |
| [Ie] rated operational current: | 250 A |
| Busbar cross section: | 20 x 3 mm |
| Net weight: | 1.28 kg |
| Quantity per set: | Set of 1 |
| Enclosure/cubicle width: | 650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed toggle horizontal 4P 1 direct 4650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed toggle horizontal 4P 1 direct 4650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed toggle horizontal 4P 1 direct 4650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle horizontal 4P 1 direct 4 |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic heavy metal free: | Yes |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Environmental Disclosure: | ENVPEP2103021_V1 |
| Code EAN: | 3606481867506 |
|---|
