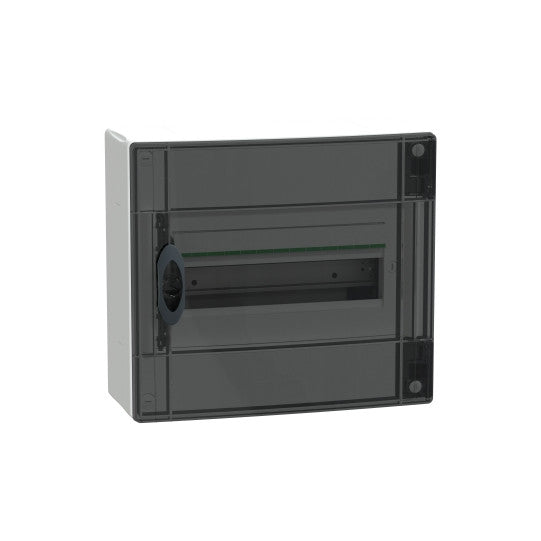

PrismaSeT XS - PrismaSeT XS - Surface-mounted enclosure - 1R - 13M - Transparent door - LVSXM113
SKU : LVSXM113
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
PrismaSeT XS - PrismaSeT XS - Surface-mounted enclosure - 1R - 13M - Transparent door - LVSXM113
DESCRIPTION
| Range : | PrismaSeT |
|---|---|
| Product name : | XS |
| Type of product or component : | Enclosure |
| Type of enclosure : | Distribution box |
| Enclosure installation : | Surface |
| Width: | 336 mm |
|---|---|
| Height: | 300 mm |
| Depth: | 151 mm |
| Internal depth: | 135 mm |
| Number of 18 mm modules per row: | 13 |
| Number of horizontal rows: | 1 |
| Total number of 18 mm modules: | 13 |
| 9 mm pitch: | 26 |
| Electrical insulation class: | Class II |
| Supplied equipment: | 1 identification label - 1 label protector - 1 terminal block - 1 breakable shutter - 1 door - 1 DIN rail - 1 backplate |
| Front plate type: | Modular |
| Door type: | Transparent |
| Rail type: | Symmetrical DIN |
| Chassis description: | Without mounting plate |
| Dissipated power in W: | 22 W |
| [In] Rated operational current: | 63 A |
| [Ui] Rated insulation voltage: | 400 V |
| Cable entry: | Cable or tube - Cut-out plates - Junction - Removable plates |
| Number of terminal blocks: | 1 ground terminal with 16 outputs |
| Distributor terminal block outputs: | 8 x 16 mm² + 8 x 6 mm² for ground |
| Connection mode: | Screw connection (ground), 8 x 10?16 mm² - Screw connection (ground), 8 x 6 mm² |
| Optional locking description: | Lock option |
| Enclosure material: | Back part |
| Product weight: | 2.200 kg |
| Color: | Enclosure |
| Market segment: | Residential - Small buildings |
| Fire resistance: | Back plate - 650°C compliant with IEC 60695-2-11 - Door - 750°C compliant with IEC 60695-2-11 - Enclosure - 650°C compliant with IEC 60695-2-11 - Front plate - 650°C compliant with IEC 60695-2-11 |
|---|---|
| IP protection rating: | IP40 with door closed |
| IK protection rating: | IK09 with door closed |
| Overvoltage category: | II |
| Operating temperature: | -25?60°C |
| Standards: | IEC 60670-1, IEC 61439-3, IEC 60670-24, EN 61439-1 |
| Quality labels: | IMQ |
| Code EAN: | 3606482040847 |
|---|
