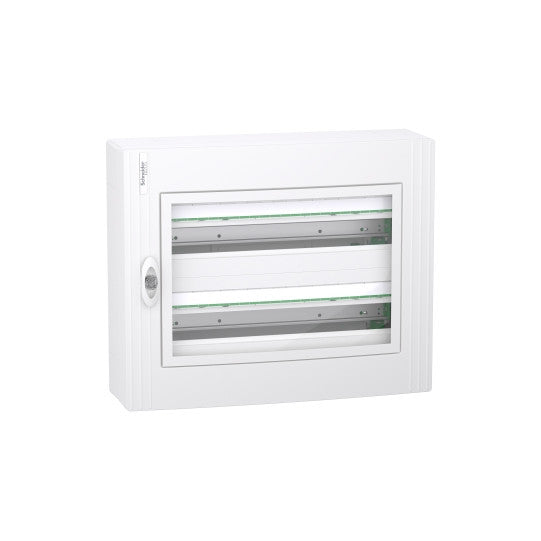

PrismaSeT XS - Surface-mounted enclosure - 2R - 24M - Transparent door - LVSXR224
SKU : LVSXR224
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
PrismaSeT XS - Surface-mounted enclosure - 2R - 24M - Transparent door - LVSXR224
DESCRIPTION
| Range: | PrismaSeT |
|---|---|
| Product name: | XS |
| Type of product or component: | Enclosure |
| Type of enclosure: | Distribution box |
| Enclosure installation: | Surface |
| Width: | 550 mm |
|---|---|
| Height: | 450 mm |
| Depth: | 168 mm |
| Internal depth: | 155 mm |
| Number of 18 mm modules per row: | 24 |
| Number of horizontal rows: | 2 |
| Total number of 18 mm modules: | 48 |
| 9 mm pitch: | 96 |
| Electric insulation class: | Class II |
| Supplied equipment: | 2 identification labels - 2 label protectors - 1 terminal block - 1 breakable seal - 1 door - 2 DIN Rails - 1 back plate |
| Type of panel: | Modular |
| Type of door: | Transparent |
| Type of rail: | Symmetrical DIN |
| Chassis description: | Without mounting plate |
| Power dissipated in W: | 67 W |
| [In] Rated operating current: | 125 A |
| [Ui] Rated insulation voltage: | 400 V |
| Cable entry: | Cable or tube - Cut plates - Junction - Removable plates |
| Number of terminals: | 1 earth with 24 outgoing |
| Outgoing terminals from distributor: | 3 x 25 mm² + 21 x 4 mm² for earth |
| Connection mode: | Screw connection (earth), 3.0 6?25 mm² - Clip-on (earth), 21.0 1.5?4 mm² (flexible) - Clip-on (earth), 21.0 6 mm² (rigid or stranded) |
| Optional locking description: | Lock option |
| Box material: | Rear part: Techno plastic - Box: Techno plastic - Front plate: Techno plastic - Door: Techno plastic |
| Product weight: | 10.270 kg |
| Color: | Box: white (RAL 9003) - Front plate: white (RAL 9003) - Door: colorless |
| Market segment: | Residential - Small buildings |
| Fire resistance: | Back plate - 650°C compliant with IEC 60695-2-11 - Door - 750°C compliant with IEC 60695-2-11 - Enclosure - 650°C compliant with IEC 60695-2-11 - Front plate - 650°C compliant with IEC 60695-2-11 |
|---|---|
| IP protection rating: | IP40 with door closed |
| IK protection rating: | IK09 with door closed |
| Overvoltage category: | II |
| Operating temperature: | -25?60°C |
| Standards: | IEC 60670-1, IEC 61439-3, IEC 60670-24, EN 61439-1 |
| Quality labels: | IMQ |
| Code EAN: | 3 606 481 073 082 |
|---|
