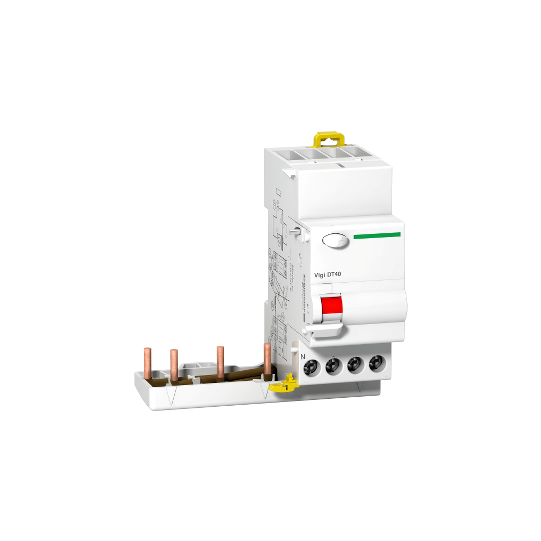

ProDis - earth leakage add-on block - Vigi DT40 - 3P + N - 25A - 30mA - A9N21470
SKU : A9N21470
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
ProDis - earth leakage add-on block - Vigi DT40 - 3P + N - 25A - 30mA - A9N21470
DESCRIPTION
| Range of product: | ProDis |
|---|---|
| Range: | Prodis |
| Product or component type: | Add-on residual current devices |
| Device short name: | Vigi DT40 |
| Poles description: | 3P + N |
| Neutral position: | Left |
| [In] rated current: | 25 A |
| Network type: | AC |
| Earth-leakage sensitivity: | 30 mA |
| Earth-leakage protection time delay: | Instantaneous |
| Earth-leakage protection class: | Type AC |
| Device location in system: | Outgoer |
|---|---|
| Network frequency: | 50 Hz |
| [Ue] rated operational voltage: | 400 V AC 50 Hz phase to phase |
| Residual current tripping technology: | Voltage independent |
| [Ui] rated insulation voltage: | 400 V AC 50 Hz conforming to EN 61009-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN 61009-1 |
| Local signalling: | ON/OFF indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Electrical connection to mcb: | By screws |
| Comb busbar and distribution block compatibility: | Upstream: ProDis |
| 9 mm pitches: | 4 |
| Height: | 81 mm |
| Width: | 54 mm |
| Depth: | 69 mm |
| Product weight: | 210 g |
| Colour: | White |
| Electrical durability: | 10000 cycles |
| Connections - terminals: | Cable downstream 0.75...16 mm² rigidCable downstream 0.33...10 mm² flexible |
| Wire stripping length: | 13 mm |
| Tightening torque: | 2 N.m |
| Product compatibility: | Single terminal |
| Standards: | EN 61009-1EN 61009-2-1 |
|---|---|
| IP degree of protection: | IP20 conforming to IEC 60529 |
| Pollution degree: | 3 conforming to EN 61009-1 |
| Tropicalisation: | 2 conforming to IEC 60068-1 |
| Relative humidity: | 95 % at 55 °C |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -5...60 °C |
| Ambient air temperature for storage: | -40...60 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480412141 |
|---|---|
| Contexte: | Prodis, Vigi DT40 bloc différentiel 3P+N 25A 30mA instantané type AC 230-415V |
