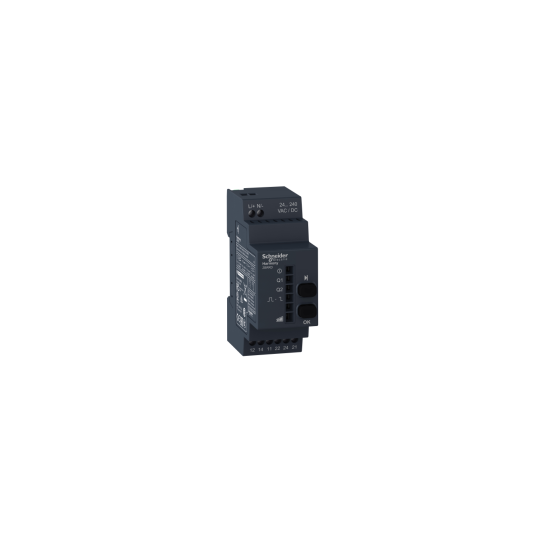

Programmable receiver - 2 relays - 24..240 V AC/DC - 2 pusbuttons - 6 LEDs - ZBRRD
SKU : ZBRRD
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Programmable receiver - 2 relays - 24..240V AC/DC - 2 pusbuttons - 6 LEDs - ZBRRD
DESCRIPTION
| Range of product: | Harmony |
|---|---|
| Product or component type: | Programmable receiver |
| Device short name: | ZBRRD |
| Product specific application: | Interface to actuators |
| Function of module: | Bi-stableMonostable |
| Reset time: | 2 ms time delay |
| Transmission frequency: | 2405 MHz |
| Level or class: | 5M00G7W |
| Antenna type: | Omnidirectional |
| Nominal output current: | 0.3 A at 48 V DC conforming to EN/IEC 60947-5-13 A at 24 V DC conforming to UL 5081.5 A at 240 V AC conforming to EN/IEC 60947-5-13 A at 120 V AC conforming to EN/IEC 60947-5-13 A at 240 V AC conforming to UL 5083 A at 24 V DC conforming to CSA C22.2 No 143 A at 240 V AC conforming to CSA C22.2 No 14 |
|---|---|
| Output type: | 2 relays |
| Output contacts: | 2 C/O |
| Input output isolation: | Galvanic isolation |
| Time delay range: | 0.5 s (tolerance: - 15...15 %) |
| Switching capacity in VA: | 1250 VA |
| Maximum switching current: | 5 mA AC/DC |
| Maximum switching voltage: | 250 V AC/DC |
| [Us] rated supply voltage: | 24...240 V AC/DC 50/60 Hz - 10...10 % |
| Communication port protocol: | Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4 |
| Maximum sensing distance: | 100 m in free field25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
| Response time: | |
| Utilisation category: | AC-15 |
| Maximum power consumption in W: | 4 W AC/DC |
| Breaking capacity: | 15 W |
| Breaking capacity: | 750 VA |
| Control circuit frequency: | 50...60 Hz +/- 10 % |
| Short-circuit protection: | 0.4 A fuse type fast blow |
| Operating position: | Any position without derating |
| Electrical connection: | 1 conductor cable 0.14...2.5 mm² - AWG 26...AWG 14 - solid - without cable end conforming to IEC 60947-12 conductors cable 0.14...1.5 mm² - AWG 26...AWG 16 - solid - without cable end conforming to IEC 60947-11 conductor cable 0.14...4 mm² - AWG 26...AWG 12 - flexible - with cable end conforming to IEC 60947-12 conductors cable 0.14...1.5 mm² - AWG 26...AWG 16 - flexible - with cable end conforming to IEC 60947-1 |
| Tightening torque: | 0.5...1 N.m conforming to EN/IEC 60947-1 |
| Housing material: | Self-extinguishing plastic |
| Status LED: | 1 LED green for power ON2 LEDs green for relay ON2 LEDs green for function mode1 LED green and yellow for reception signal |
| Mounting support: | 35 mm symmetrical DIN rail conforming to EN/IEC 60715Mounting plate |
| Rated short-duration power frequency withstand voltage: | 1.5 kV 50 Hz conforming to EN/IEC 60947-5-1 |
| [Uimp] rated impulse withstand voltage: | 4 kV |
| Surge withstand: | 1 kV differential mode conforming to IEC 61000-4-52 kV common mode conforming to IEC 61000-4-5 |
| Max power consumption in W: | 1 mW |
| Number of channels: | 1 |
| Modulation technique: | O-QPSK |
| Bandwidth: | 5 MHz |
| Antenna gain: | 0 dBi |
| Width: | 36 mm |
| Height: | 108 mm |
| Depth: | 75 mm |
| Product weight: | 0.13 kg |
| [Us] rated supply voltage: | 24...240 V |
| Standards: | CSA C22.2 No 14EN/IEC 60947-5-1UL 508EN/IEC 60947-1 |
|---|---|
| Radio agreement: | RSSSRRCANATELARIB T66FCCICASA |
| Product certifications: | CCCULGOSTCSAC-Tick |
| Marking: | CE |
| Ambient air temperature for storage: | -40...70 °C |
| Relative humidity: | 90 % at -20...55 °C, without condensation conforming to ETSI EN 300 440-1 |
| Vibration resistance: | +/- 7.5 mm (f= 5...14 Hz) conforming to IEC 60068-2-62 gn (f= 8...150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 10 gn (duration = 16 ms) for 6000 shocks conforming to IEC 60068-2-27 |
| IP degree of protection: | IP20 (casing) conforming to IEC 60529IP20 (terminals) |
| Pollution degree: | 2 conforming to IEC 60664-1 |
| Overvoltage category: | II conforming to IEC 60664-1 |
| Insulation resistance: | > 500 MOhm at 500 V DC conforming to NF C 20-030 |
| [Ui] rated insulation voltage: | 250 V conforming to IEC 60664-1 |
| Electromagnetic compatibility: | Immunity for industrial environments conforming to EN/IEC 61000-6-2Conducted and radiated emissions class B conforming to CISPR 22Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2Electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2Susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3Susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3Electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4Electrical fast transient/burst immunity test - test level: 2 kV (power supply wires) conforming to IEC 61000-4-41.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-51.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5Conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6Immunity to microbreaks and voltage drops - test level: 10 ms conforming to IEC 61000-4-11Radiated emission conforming to ETSI EN 300 440-1Conducted emission conforming to EN 300-489-1Conducted emission conforming to ETSI EN 300 489-3Radiated emission conforming to ETSI EN 300 440-2 |
| Electrical durability: | 100000 cycles |
| Mechanical durability: | 1000000 cycles |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480521164 |
|---|
