PTC probe relay TeSys - LT3 with manual reset - 24 V - 1 NO + 1 NC - LT3SM00ED
SKU : LT3SM00ED
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.

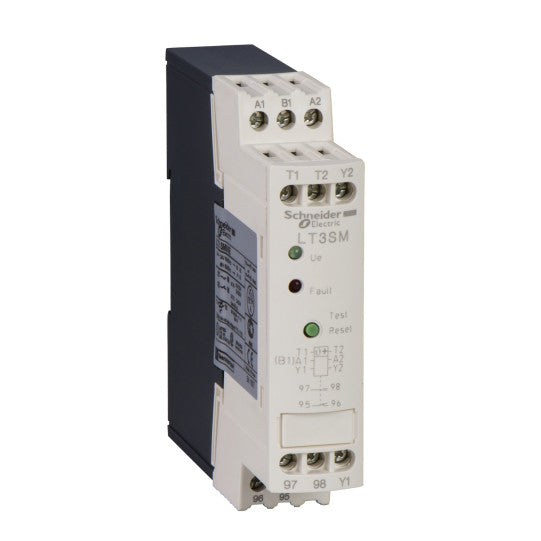

PTC probe relay TeSys - LT3 with manual reset - 24 V - 1 NO + 1 NC - LT3SM00ED
DESCRIPTION
| Range of product: | LT3 |
|---|---|
| Device short name: | LT3SE |
| Product or component type: | Thermistor protection units |
| [Uc] control circuit voltage: | 24...48 V DC |
| Reset: | Manual |
| Control circuit voltage limits: | 0.8...1.25 Uc |
|---|---|
| Contacts type and composition: | 1 NC + 1 NO dual voltage |
| [Ith] conventional free air thermal current: | 5 A for output control relay |
| [Ui] rated insulation voltage: | Output control relay: 500 V AC |
| [Ue] rated operational voltage: | 250 V AC 50/60 Hz for output control relay |
| Signalling function: | Fault indicationVoltage indication |
| Control type: | Manual testManual reset |
| Probe interchangeability: | Label mark A conforming to IEC 60034-11 |
| Hold-in power consumption in W: | 1 W |
| Hold-in power consumption in VA: | 2.5 VA |
| Resistance: | 1500...1650 Ohm reset2700...3100 Ohm tripping |
| Number of probes: | 0...6 |
| Input voltage: | |
| Maximum short circuit detection resistance: | 20 Ohm |
| Condition of use: | Connection of probes 1000 m >2.5 mm²Connection of probes 500 m >1.5 mm² |
| [Uimp] rated impulse withstand voltage: | 2.5 kV |
| Rated power in VA: | 100 VA at 220 V - electrical durability: 500000 cycles |
| Breaking capacity: | 2 A at 24 V DC DC-133 A at 250 V AC AC-166 A at 120 V AC AC-16 |
| Connections - terminals: | Power circuit: cage type connector 1 cable(s) 0.75...2.5 mm²flexible with cable endPower circuit: cage type connector 1 cable(s) 0.75...2.5 mm²solid with cable endPower circuit: cage type connector 1 cable(s) 1...2.5 mm²flexible without cable endPower circuit: cage type connector 1 cable(s) 1...2.5 mm²solid without cable endPower circuit: cage type connector 2 cable(s) 0.75...2.5 mm²flexible with cable endPower circuit: cage type connector 2 cable(s) 0.75...2.5 mm²solid with cable endPower circuit: cage type connector 2 cable(s) 1...2.5 mm²flexible without cable endPower circuit: cage type connector 2 cable(s) 1...2.5 mm²solid without cable end |
| Tightening torque: | 0.8 N.m |
| Height: | 100 mm |
| Width: | 22.5 mm |
| Depth: | 100 mm |
| Product weight: | 0.22 kg |
| Compatibility code: | LT3SE |
| Standards: | IEC 60947-8IEC 60034-11VDE 0660 |
|---|---|
| IP degree of protection: | IP20 conforming to IEC 60529IP20 conforming to VDE 0106 |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...85 °C conforming to IEC 60068-2-2-40...85 °C conforming to IEC 60068-2-2 |
| Operating altitude: | > 1500...3000 m with derating in temperature |
| Vibration resistance: | 1 gn 25...150 Hz conforming to IEC 60068-2-62.5 gn 2...25 Hz conforming to IEC 60068-2-6 |
| Shock resistance: | 5 gn 11 ms conforming to IEC 60068-2-27 |
| Electromagnetic compatibility: | Resistance to electrostatic discharge level 3 conforming to IEC 61000-4-2Resistance to fast transient level 3 conforming to IEC 61000-4-4Surge resistance 1.2/50-8/20 level 4 conforming to IEC 61000-4-5Susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3Immunity to microbreaks and voltage drops conforming to IEC 61000-4-11 |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3389110698992 |
|---|---|
