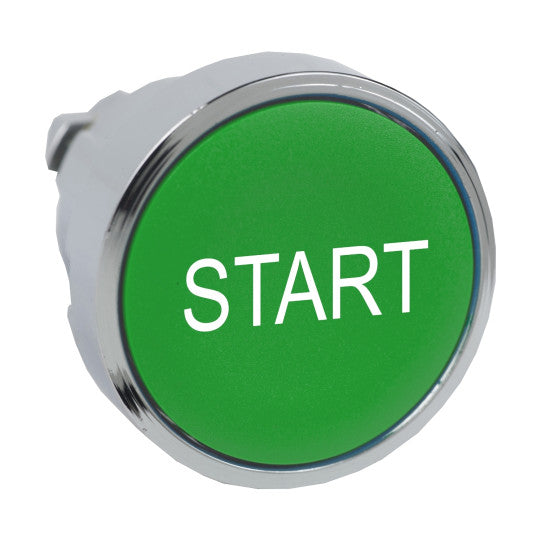

Push button head, metal, flush, green, Ø22, spring return, marked START - ZB4BA333
SKU : ZB4BA333
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Push button head, metal, flush, green, Ø22, spring return, marked START - ZB4BA333
DESCRIPTION
| Range of product: | Harmony XB4 |
|---|---|
| Product or component type: | Head for non-illuminated push-button |
| Device short name: | ZB4 |
| Bezel material: | Chromium plated metal |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Head type: | Standard |
| Shape of signaling unit head: | Round |
| Type of operator: | spring return |
| Operator profile: | Green flush, START (white) |
| CAD overall width: | 29 mm |
|---|---|
| CAD overall height: | 29 mm |
| CAD overall depth: | 28 mm |
| Mechanical durability: | 10000000 cycles |
| Electrical composition code: | C1 for C2 for C11 for C15 for |
| Main group: | Push-button |
| Group of product: | Flush push with marking |
| Cap/operator or lens colour: | Green |
| Marking: | START |
| Colour of marking: | White |
| Device presentation: | Basic element |
| Customizable: | No |
| Customizable: | 0 |
| Compatibility code: | ZB4 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class I conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67IP69IP69K |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK06 conforming to IEC 50102 |
| Standards: | EN/IEC 60947-5-4CSA C22.2 No 14EN/IEC 60947-5-5EN/IEC 60947-1EN/IEC 60947-5-1UL 508JIS C8201-5-1JIS C8201-1 |
| Product certifications: | UL listedBVLROS (Lloyds register of shipping)CSAGLDNV |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110887532 |
|---|
