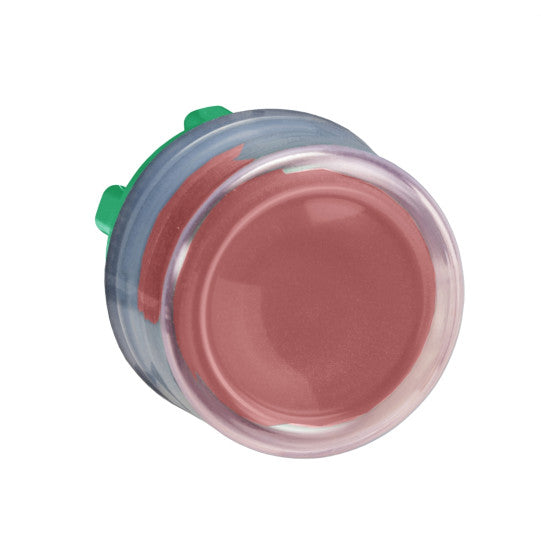

Push button head, plastic, projecting, red, Ø22, spring return, booted, unmarked - ZB5AP4
SKU : ZB5AP4
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Push button head, plastic, projecting, red, Ø22, spring return, booted, unmarked - ZB5AP4
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Head for non-illuminated push-button |
| Device short name: | ZB5 |
| Product compatibility: | Not compatible with legend holder |
| Bezel material: | Dark grey plastic |
| Mounting diameter: | 22 mm |
| Head type: | Standard |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Type of operator: | spring return |
| Operator profile: | Red projecting, unmarked |
| Operator additional information: | Clear boot |
| CAD overall width: | 30 mm |
|---|---|
| CAD overall height: | 30 mm |
| CAD overall depth: | 35 mm |
| Product weight: | 0.014 kg |
| Mechanical durability: | 10000000 cycles |
| Main group: | Push-button |
| Group of product: | Silicone boot push |
| Station name: | XALD 1...5 cut-outsXALK 2...5 cut-outs |
| Cap/operator or lens colour: | Red |
| Marking: | Unmarked |
| Electrical composition code: | C1 for C2 for C11 for C15 for SF1 for SR1 for |
| Device presentation: | Basic element |
| Customizable: | Yes |
| Customizable: | 1 |
| GCR BRIDGE: | ZB5APCUST01 |
| Compatibility code: | ZB5 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67 conforming to IEC 60529IP69 conforming to IEC 60529IP69K conforming to ISO 20653 |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| IK degree of protection: | IK03 conforming to IEC 50102 |
| Product certifications: | CSABVUL listedDNVLROS (Lloyds register of shipping)GL |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110906677 |
|---|
