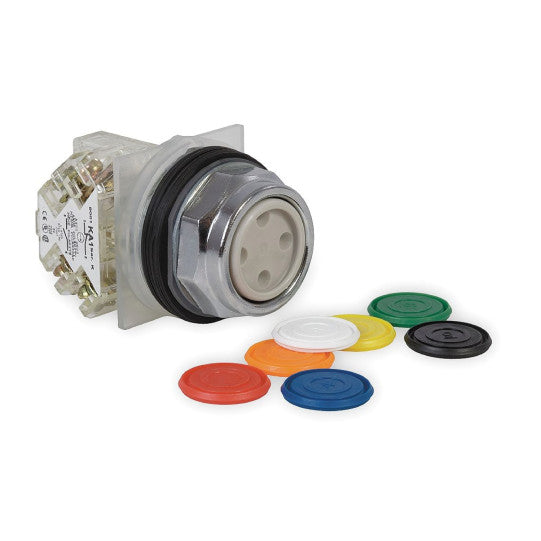

PUSHBUTTON 600VAC 10A 30MM TYPE K - 9001KR1UH13
SKU : 9001KR1UH13
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
PUSHBUTTON 600VAC 10A 30MM TYPE K - 9001KR1UH13
DESCRIPTION
| Range of product: | Harmony 9001K |
|---|---|
| Product or component type: | Push-button |
| Device short name: | 9001K |
| Type of operator: | spring return |
| Operator profile: | 7 colours choice flush, unmarked |
| Operator additional information: | Full guard in plastic |
| Bezel material: | Chromium plated metal |
|---|---|
| Mounting diameter: | 30 mm |
| Shape of signaling unit head: | Octagonal |
| Contacts type and composition: | 1 C/O |
| Connections - terminals: | Screw clamp terminals 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1 |
| Tightening torque: | 0.8 N.m conforming to IEC 60947-1 |
| Shape of screw head: | Cross slotted |
| Mechanical durability: | 5000000 cycles |
| Operating position: | Any position |
| [Ie] rated operational current: | 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA |
| [Ui] rated insulation voltage: | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 2.5 kV conforming to IEC 60947-1 |
| Contacts material: | Silver alloy contacts |
| Contact operation: | Standard |
| Positive opening: | Without |
| Short-circuit protection: | 10 A cartridge fuse conforming to IEC 60947-5-1 |
| [Ith] conventional free air thermal current: | 10 A |
| [Icm] rated short-circuit making capacity: | 12 kA at 600 V AC-15, 7200 VA15 kA at 480 V AC-15, 7200 VA30 kA at 240 V AC-15, 7200 VA60 kA at 120 V AC-15, 7200 VA0.1 kA at 600 V DC-130.27 kA at 250 V DC-130.55 kA at 125 V DC-13 |
| Rated breaking capacity: | 3 kA at 240 V AC-15, 720 VA6 kA at 120 V AC-15, 720 VA1.2 kA at 600 V AC-15, 720 VA1.5 kA at 480 V AC-15, 720 VA0.1 kA at 600 V DC-130.27 kA at 250 V DC-130.55 kA at 125 V DC-13 |
| Terminals description ISO n°1: | (13-14-11-12)OF |
| CAD overall width: | 48 mm |
| CAD overall height: | 45 mm |
| CAD overall depth: | 56 mm |
| Product weight: | 0.121 kg |
| Device presentation: | Complete product |
| Compatibility code: | 9001K |
| Standards: | UL 508JIS C 4520EN/IEC 60947-5-1CSA C22.2 No 14EN/IEC 60947-5-4EN/IEC 60947-1JIS C 852 |
|---|---|
| Product certifications: | NEMAUL 508 |
| Protective treatment: | TC |
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -25...70 °C |
| Vibration resistance: | 7 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 50 gn conforming to IEC 60068-2-27 |
| Electrical shock protection class: | Class II conforming to IEC 61140 |
| IP degree of protection: | IP66 conforming to IEC 60529 |
| NEMA degree of protection: | NEMA 1NEMA 12NEMA 13NEMA 2NEMA 3NEMA 3RNEMA 4 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110910988 |
|---|
