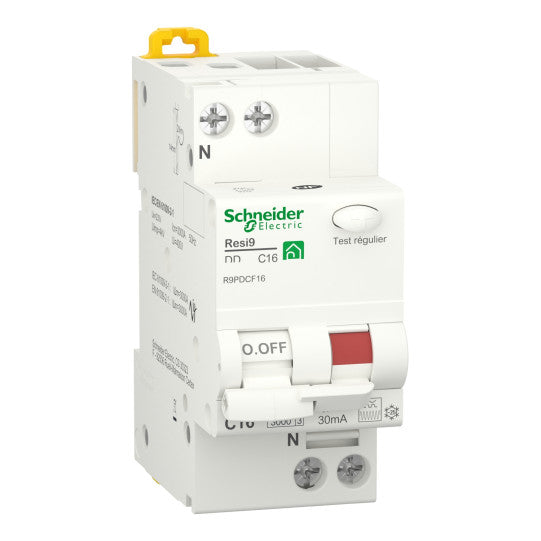

RCBO, Resi9 DD, 1P + N, 16 A, C Curve, F type, 30 mA, 3000 A - R9PDCF16
SKU : R9PDCF16
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
RCBO, Resi9 DD, 1P + N, 16 A, C Curve, F type, 30 mA, 3000 A - R9PDCF16
DESCRIPTION
| Range: | Resi9 |
|---|---|
| Product name: | Resi9 DD |
| Product or component type: | Residual current breaker with overcurrent protection (RCBO) |
| Device application: | Distribution |
| Poles description: | 1P + N |
| Neutral position: | Left |
| Number of protected poles: | 1 |
| [In] rated current: | 16 A at 30 °C conforming to EN/IEC 61009-2-1 |
| Network type: | AC |
| Trip unit technology: | Thermal-magnetic |
| Curve code: | C |
| Earth-leakage sensitivity: | 30 mA conforming to EN/IEC 61009-2-1 |
| Earth-leakage protection time delay: | Instantaneous |
| Earth-leakage protection class: | Type F |
| Breaking capacity: | 3000 A Icn at 230 V AC 50 Hz conforming to EN/IEC 61009-2-1 |
| Quality labels: | NF |
| Network frequency: | 50 Hz |
|---|---|
| [Ue] rated operational voltage: | 230 V AC 50 Hz |
| Magnetic tripping limit: | 5...10 x In AC |
| Limitation class: | 3 conforming to EN/IEC 61008 |
| [Ui] rated insulation voltage: | 400 V |
| Surge current: | 3000 A |
| Contact position indicator: | Yes |
| Control type: | Toggle |
| Local signalling: | ON/OFF indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 4 |
| Height: | 82 mm |
| Width: | 36 mm |
| Depth: | 70.5 mm |
| Product weight: | 186 g |
| Colour: | White (RAL 9003) |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 7500 cycles 230 V AC 50 Hz conforming to EN/IEC 61009-2-1 |
| Connections - terminals: | Tunnel type terminals (top or bottom) - 1...16 mm² - rigidTunnel type terminals (top or bottom) - 1...10 mm² - flexibleTunnel type terminals (top or bottom) - 1...10 mm² - flexible with ferrule |
| Wire stripping length: | 13 mm for top or bottom connection |
| Tightening torque: | 2 N.m top or bottom |
| Earth-leakage protection: | Integrated |
| Standards: | EN/IEC 61009-2-1EN/IEC 61009-1 |
|---|---|
| Product certifications: | CE |
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Electromagnetic compatibility: | 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008 |
| Tropicalisation: | 2 conforming to IEC 60068-1 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -5...40 °C |
| Ambient air temperature for storage: | -40...80 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481116772 |
|---|---|
| Substitution_texte: | Product temporarily unavailable. |
