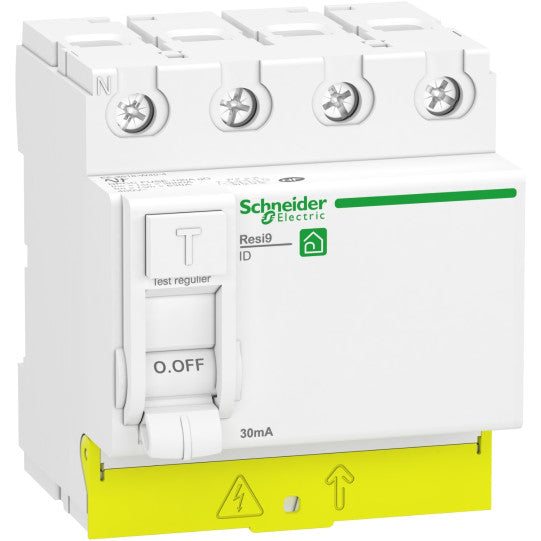

RCCB, Resi9 ID, 3P + N, 63 A, A type, 400 V, 30 mA, 4 modules - R9PRA463
DESCRIPTION
| Range: | Resi9 |
|---|---|
| Product name: | Resi9 XP ID |
| Product or component type: | Residual current circuit breaker (RCCB) |
| Poles description: | 3P + N |
| Neutral position: | Left |
| [In] rated current: | 63 A at 30 °C conforming to EN/IEC 61008 |
| Network type: | AC |
| Earth-leakage sensitivity: | 30 mA conforming to EN/IEC 61008 |
| Earth-leakage protection time delay: | Instantaneous |
| Earth-leakage protection class: | Type A |
| Rated breaking and making capacity: | Im 500 A conforming to EN/IEC 61008 |
| Rated conditional short-circuit current: | Inc 3 kA |
| Quality labels: | NF |
| Network frequency: | 50 Hz |
|---|---|
| [Ue] rated operational voltage: | 400 V AC 50 Hz |
| [Ui] rated insulation voltage: | 440 V |
| [Uimp] rated impulse withstand voltage: | 4 kV |
| Contact position indicator: | Yes |
| Control type: | Toggle |
| Local signalling: | ON/OFF indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 8 |
| Height: | 81 mm |
| Width: | 72 mm |
| Depth: | 73 mm |
| Product weight: | 350 g |
| Embedding depth: | 43.5 mm |
| Colour: | White (RAL 9003) |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 10000 cycles |
| Connections - terminals: | Tunnel type terminals (top or bottom) - 1...35 mm² - rigidTunnel type terminals (top or bottom) - 1...25 mm² - flexibleTunnel type terminals (top or bottom) - 1...25 mm² - flexible with ferrule |
| Wire stripping length: | 15 mm for top or bottom connection |
| Tightening torque: | 3.5 N.m top or bottom |
| Standards: | EN/IEC 61008 |
|---|---|
| Product certifications: | CE |
| IP degree of protection: | IP20 |
| Pollution degree: | 2 |
| Electromagnetic compatibility: | 8/20 µs impulse withstand, 3000 A conforming to IEC 61008 |
| Tropicalisation: | 2 conforming to IEC 60068-1 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -25...40 °C |
| Ambient air temperature for storage: | -40...80 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481176714 |
|---|---|
| Substitution_texte: | Produit non disponible |
