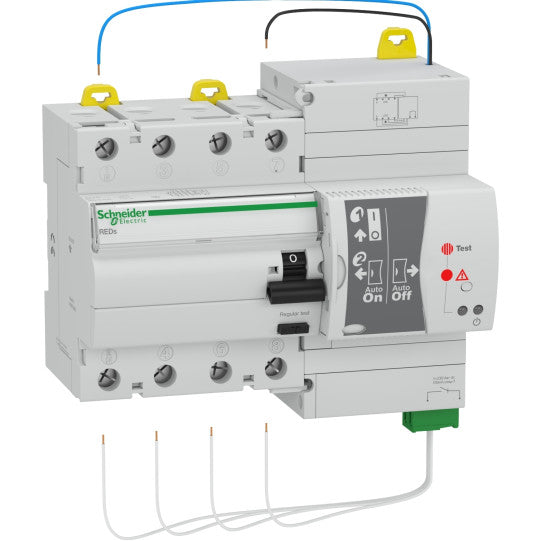

RCCB with re-closer - RED - 4 poles - 40 A - class A - 300 mA - 18267
SKU : 18267
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
RCCB with re-closer - RED - 4 poles - 40 A - class A - 300 mA - 18267
DESCRIPTION
| Range of product: | RED |
|---|---|
| Range: | Acti 9 |
| Product or component type: | Residual current circuit breaker (RCCB) |
| Device short name: | REDs |
| Protection type: | Recloser |
| Poles description: | 4P |
| Neutral position: | Left |
| Signal contacts composition: | 1NO or 1NC or intermittent 1 Hz |
| [In] rated current: | 40 A |
| Earthing system: | TN-STT |
| Network type: | AC |
| Earth-leakage sensitivity: | 300 mA |
| Device location in system: | Outgoer |
|---|---|
| Network frequency: | 50 Hz |
| [Ue] rated operational voltage: | 400 V AC 50 Hz phase to neutral |
| Reset: | Fault reset earth leakage |
| Test function: | Manual at > 170 V |
| Earth-leakage protection time delay: | Instantaneous |
| Earth-leakage protection class: | Type A |
| Minimum leakage resistance: | 5 kOhm at operating2.5 kOhm at non-operating |
| [Im] rated making and breaking capacity: | Idm 630 A 400 V |
| Rated conditional short-circuit current: | Inc: 15 kA - associated with iC60H, 25 AInc: 6 kA - associated with DPN, 40 AInc: 10 kA - associated with gG fuse, 40 AInc: 15 kA - associated with iC60L, 25 AInc: 15 kA - associated with NG125, 25 AInc: 15 kA - associated with gG fuse, 25 AInc: 10 kA - associated with DPNN, 40 AInc: 10 kA - associated with iC60H, 40 AInc: 10 kA - associated with iC60L, 40 AInc: 10 kA - associated with NG125, 40 AInc: 10 kA - associated with iC60N, 40 A |
| [Ui] rated insulation voltage: | 500 V |
| [Uimp] rated impulse withstand voltage: | 4 kV |
| Surge current: | 250 A |
| Control type: | Toggle |
| Local signalling: | 2 LEDsResidual current device |
| Operating mode: | Reclosing time: Max nb of consecutive restart: 3Min interval between 2 closings: 30 sStopping restart cycle if insulation fault present: 15 minInsulation fault presence monitoring |
| Insulation fault diagnosis: | If fault detected, diagnosis every 2 minutes |
| Signalling circuit voltage: | AC: 5...230 VDC: 5...230 V |
| Signalling output current: | 0.6 mA min100 mA max, cos phi =1 |
| Mounting mode: | Fixed |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 14 |
| Height: | 98 mm |
| Width: | 125 mm |
| Depth: | 79.5 mm |
| Embedding depth: | 73.5 mm |
| Product weight: | 0.67 kg |
| Mechanical durability: | 4000 cycles open-close |
| Connections - terminals: | Guard tunnel terminal 35 mm² rigidGuard tunnel terminal 35 mm² flexibleGuard tunnel terminal 35 mm² flexible with ferrule |
| Auxiliary connection terminal: | Tunnel type terminal in 2.5 mm² flexibleTunnel type terminal in 2.5 mm² rigidTunnel type terminal in 2.5 mm² flexible with ferrule |
| Wire stripping length: | Power circuit: 12 mmSignaling: 9 mm |
| Tightening torque: | Power circuit: 2 N.mSignaling: 0.4 N.m |
| Market segment: | Small commercial |
| Compatibility code: | REDs |
| Standards: | EN 61008IEC 61008 |
|---|---|
| IP degree of protection: | IP20 |
| Pollution degree: | 2 |
| Electromagnetic compatibility: | 8/20 µs wave immunity, 250 A |
| Tropicalisation: | 2 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -5...40 °C |
| Ambient air temperature for storage: | -20...60 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3303430182672 |
|---|
