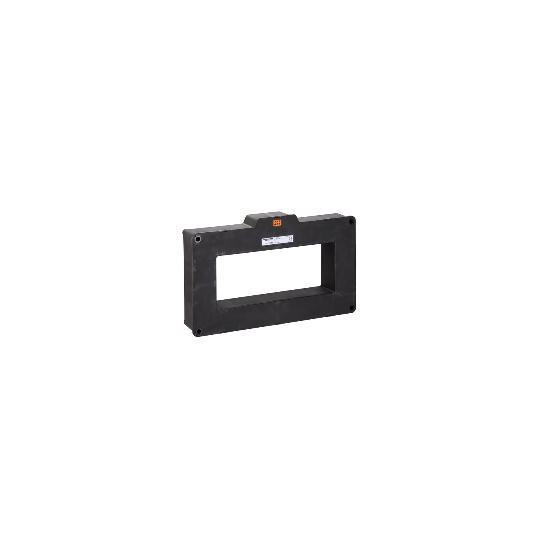

rectangular sensor L1 type, Vigirex, 280 mm X 115 mm, 1600 A - 56053
SKU : 56053
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
rectangular sensor L1 type, Vigirex, 280 mm X 115 mm, 1600 A - 56053
DESCRIPTION
| Range: | VigiPacT |
|---|---|
| Device short name: | L |
| Product or component type: | Earth leakage current sensor |
| Device application: | Equipment monitoring and control |
| Range compatibility: | VigiPacT RH10M residual current protection relayVigiPacT RH10P residual current protection relayVigiPacT RH21M residual current protection relayVigiPacT RH21P residual current protection relayVigiPacT RH68M residual current protection relayVigiPacT RH86M residual current protection relayVigiPacT RH86P residual current protection relayVigiPacT RH99M residual current protection relayVigiPacT RH99P residual current protection relayVigiPacT RH197M residual current protection relayVigiPacT RH197P residual current protection relayVigiPacT RHU residual current protection relayVigiPacT RHUs residual current protection relayVigiPacT RMH residual current protection relay |
| Current transformer type: | Rectangular sensor |
| [Ie] rated operational current: | 1600 A |
| Transformer ratio: | 1/1000 |
|---|---|
| [Icw] rated short-time withstand current: | 100 kA for 0.5 s |
| Residual short-circuit withstand current: | 85 kA / 0.5 s |
| Overvoltage category: | IV |
| [Uimp] rated impulse withstand voltage: | 12 kV |
| Mounting mode: | Fixed (cables)Fixed (busbar) |
| Connections - terminals: | Screw connection 0.2...2.5 mm² |
| Net weight: | 13.26 kg |
| Height: | Outside: 233 mmInside: 115 mm |
| Width: | Outside: 381 mmInside: 280 mm |
| Height: | 233 mm |
| Depth: | Outside: 71 mmInside: 71 mm |
| Width: | 381 mm |
| Depth: | 71 mm |
| IP degree of protection: | Connectors: IP20IP30 |
|---|---|
| Environmental characteristic: | Exposure to damp heat not in service (25...55 °C, RH 95 %) |
| Ambient air temperature for operation: | -35...80 °C |
| Ambient air temperature for storage: | -55...100 °C |
| Standards: | IEC 60947-2 |
| Product certifications: | CE |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3303430560531 |
|---|
