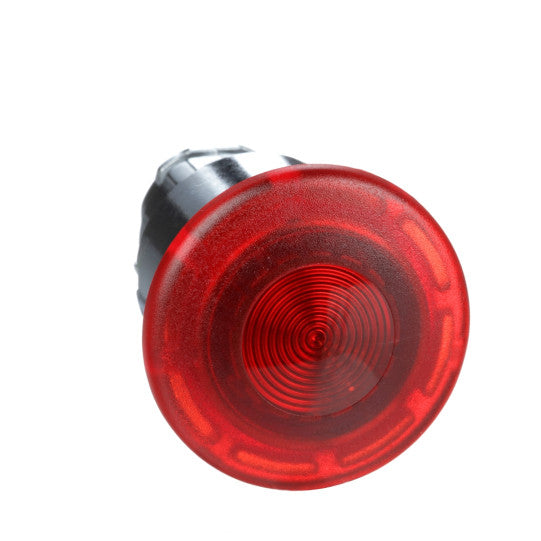

red Ø40 Emerg switching off button head Ø22 latching push-pull for integral LED - ZB4BW643
SKU : ZB4BW643
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
red Ø40 Emerg switching off button head Ø22 latching push-pull for integral LED - ZB4BW643
DESCRIPTION
| Range of product: | Harmony XB4 |
|---|---|
| Product or component type: | Head for illuminated emergency switching off push-button |
| Device short name: | ZB4 |
| Product compatibility: | Integral LED |
| Bezel material: | Chromium plated metal |
| Head type: | Standard |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Type of operator: | mechanical latching |
| Reset: | Push-pull |
| Operator profile: | Red mushroom Ø 40 mm, unmarked |
| CAD overall width: | 40 mm |
|---|---|
| CAD overall height: | 40 mm |
| CAD overall depth: | 53 mm |
| Product weight: | 0.051 kg |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Mechanical durability: | 500000 cycles |
| Electrical composition code: | M6 for M10 for M3 for M4 for |
| Main group: | Switching off |
| Group of product: | Emergency switching off push-pull illuminated |
| Cap/operator or lens colour: | Red |
| Marking: | Unmarked |
| Device presentation: | Basic sub-assemblies |
| Customizable: | No |
| Customizable: | 0 |
| Compatibility code: | ZB4 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class I conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP69IP69K |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK05 conforming to EN 50102 |
| Standards: | JIS C8201-5-1IEC 60364-5-53EN/IEC 60947-5-5EN/IEC 60947-5-1EN/IEC 60947-5-4EN/IEC 60947-1CSA C22.2 No 14UL 508JIS C8201-1 |
| Product certifications: | CSAGLUL listedBVLROS (Lloyds register of shipping)DNV |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110666618 |
|---|
