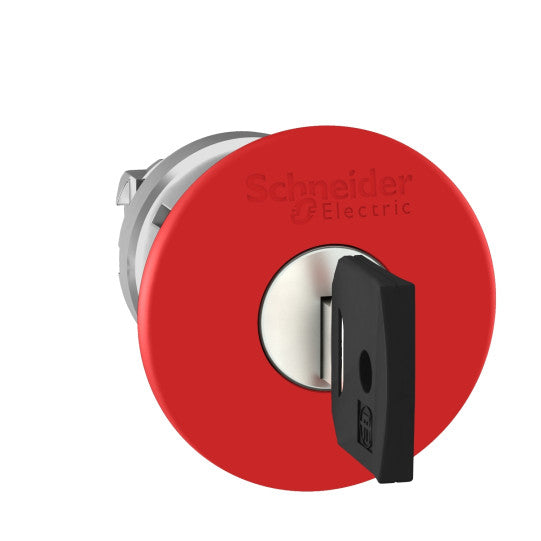

red Ø40 Emergency stop, switching off head Ø22 trigger and latching key release - ZB4BS94412
SKU : ZB4BS94412
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
red Ø40 Emergency stop, switching off head Ø22 trigger and latching key release - ZB4BS94412
DESCRIPTION
| Range of product: | Harmony XB4 |
|---|---|
| Product or component type: | Head for emergency switching off push-button |
| Device short name: | ZB4 |
| Bezel material: | Chromium plated metal |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Type of operator: | trigger action and mechanical latching |
| Reset: | Key release |
| Operator profile: | Red mushroom Ø 40 mm, unmarked |
| Type of keylock: | Ronis 421E |
| Key withdrawal position: | Center |
| Head type: | Standard |
| CAD overall width: | 40 mm |
|---|---|
| CAD overall height: | 40 mm |
| CAD overall depth: | 79 mm |
| Product weight: | 0.098 kg |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Mechanical durability: | 300000 cycles |
| Electrical composition code: | C7 for C8 for C11 for C15 for C10 for |
| Main group: | E-stop |
| Group of product: | Emergency stop key release |
| Cap/operator or lens colour: | Red |
| Marking: | Unmarked |
| Device presentation: | Basic element |
| Customizable: | No |
| Customizable: | 0 |
| Compatibility code: | ZB4 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Electrical shock protection class: | Class I conforming to IEC 61140 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67IP69IP69K |
| NEMA degree of protection: | NEMA 13NEMA 4XNEMA 4NEMA 12 |
| IK degree of protection: | IK03 conforming to IEC 50102 |
| Standards: | EN/IEC 60947-5-1GB 14048.5EN/ISO 13850EN/IEC 60947-5-5IEC 60364-5-53EN/IEC 60947-5-4EN/IEC 60947-1UL 508EN/IEC 60204-1CSA C22.2 No 14JIS C8201-5-1JIS C8201-1 |
| Product certifications: | LROS (Lloyds register of shipping)CSAUL listedDNVBVGL |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110122985 |
|---|
