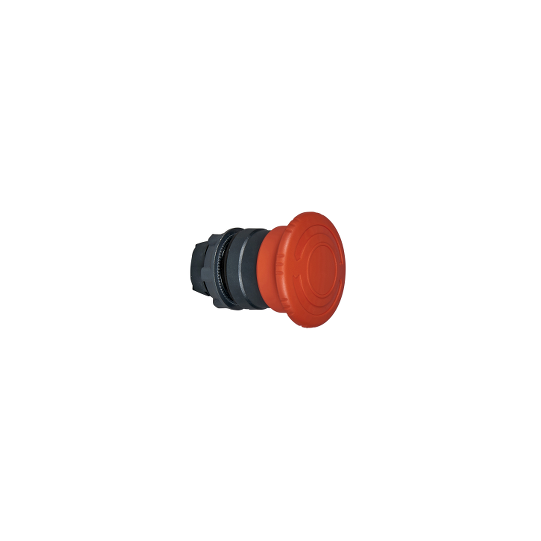

red Ø40 Emergency switching off pushbutton head Ø22 latching turn release - ZB5AS54
SKU : ZB5AS54
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
red Ø40 Emergency switching off pushbutton head Ø22 latching turn release - ZB5AS54
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Head |
| Product destination: | Emergency stop push-button |
| Device short name: | ZB5 |
| Bezel material: | Plastic |
| Head type: | Standard |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Type of operator: | mechanical latching |
| Reset: | Turn to release |
| Operator profile: | Red mushroom Ø 40 mm, unmarked |
| CAD overall width: | 30 mm |
|---|---|
| CAD overall height: | 30 mm |
| CAD overall depth: | 57 mm |
| Product weight: | 0.044 kg |
| Mechanical durability: | 300000 cycles |
| Main group: | Switching off |
| Group of product: | Emerg. swit. off turn to rel. |
| Station name: | XALD 1 cut-outXALK 1 cut-out |
| Cap/operator or lens colour: | Red |
| Marking: | Unmarked |
| Electrical composition code: | C7 for C8 for C11 for C15 for SF1 for SR1 for C10 for |
| Compatibility code: | ZB5 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67IP69IP69K |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| IK degree of protection: | IK03 conforming to IEC 50102 |
| Standards: | JIS C8201-5-1UL 508GB 14048.5EN/IEC 60947-5-5EN/IEC 60947-5-1CSA C22.2 No 14IEC 60364-5-53EN/IEC 60947-5-4EN/IEC 60947-1JIS C8201-1 |
| Product certifications: | CSABVUL listedLROS (Lloyds register of shipping)DNVGL |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Contexte: | Harmony tête de coupure d'urgence Ø 40 tourner pour déverrouiller Ø22 |
|---|---|
| Substitution_texte: | Obsolete product, here is the proposed substitution for the reference ZB5AS54 : ZB5AS844 |
